Moody Blue: Subaru Impreza WRXTi

The owner of this beautiful Subaru is none other than Jean-Michel, a friend I met back in 2009. At that time his car was already looking great and leading into being a “big” project. Like the GT500 from Gone in 60 Seconds this Subaru is his Eleanor, his unicorn, the one car of his dreams, but the one which did everything to him – good and bad. Fast forward a year and Jean-Michel had stopped counting the number of times he had completely disassembled the engine to start over and make the car running great. It’s been a long 3 years waiting to photograph it and now the chance presented itself. One thing is for certain, Jean-Michel continues to refine his Subaru in search for perfection.

Moody Blue: Subaru Impreza WRXTi

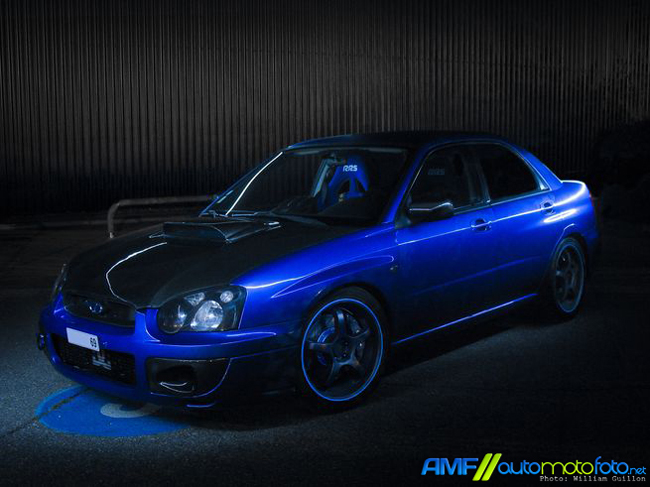

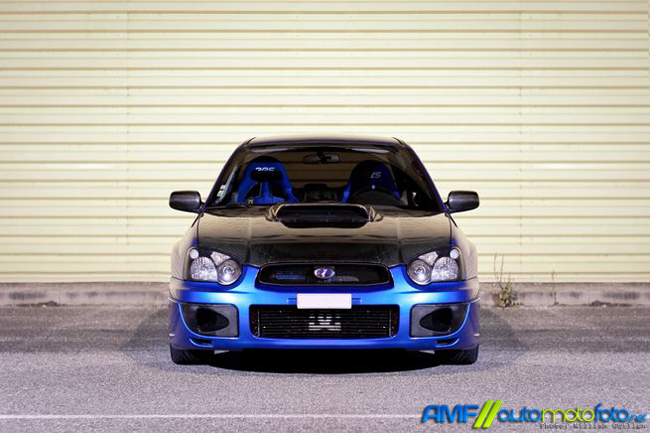

Lets look at the exterior to start. The first thing you notice is the stunning carbon fiber hood that retains only the central air intake scoop from STi model. There is also the presence of a Kaminari carbon fiber intake ducts in place of the traditional fog lights. Adding to the mod list you’ll also notice JDM grille with blue emblem, a blue tow hook, and a custom “DC” intercooler.

Moody Blue: Subaru Impreza WRXTi

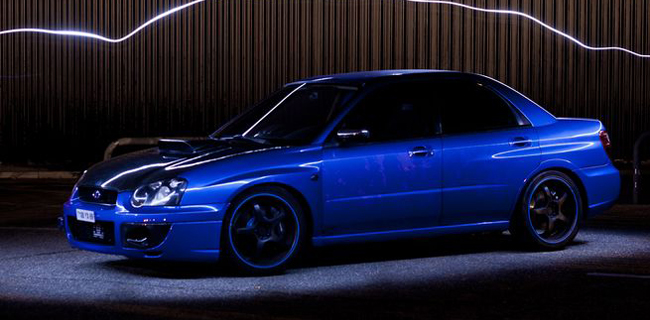

On side, the carbon mirrors are discretely black alongside the tinted windows. Unlike most Subarus, Jean-Michel removed the STi Spec C side-skirts for no other reason than to be different.

Moody Blue: Subaru Impreza WRXTi

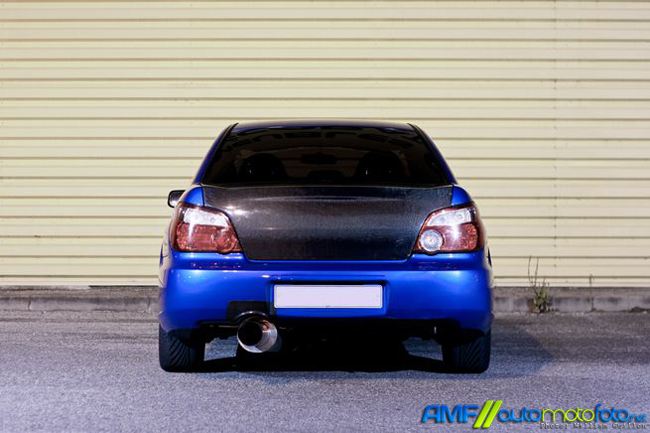

At back, the imposing original high wing disappears and the factory metal trunk is replaced by a carbon model. The rear bumper has also been swapped to a piece from a Spec-C STi model.

Moody Blue: Subaru Impreza WRXTi

Wheels of choice are Parotech (a French Brand, from France) and are called Black Dragon. Initially the wheels came in black and with a polished stainless lip, but like most things done to this car, things changed. Now the wheels are fully black and highlighted by a discrete blue pin-stripe line. This Subaru wants to be discreet, but effective and it is at that!

Moody Blue: Subaru Impreza WRXTi

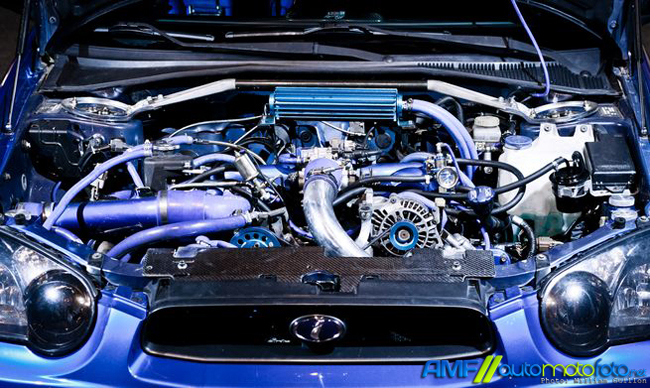

Under the hood, the blue and carbon theme continues. The engine block has been completely dismantled and reassembled by Jean-Michel himself providing an enhanced power output of over 400hp without going overboard and a big step from the factory 225hp! The list of modifications to the engine block deserves a book itself as there is little that hasn’t been done. I invite you to take a look at the specs below to know the secrets of this beast from France.

Moody Blue: Subaru Impreza WRXTi

Today, Jean-Michel continues to refine his baby in a never ending quest for the ultimate Subaru in France. At times the task can be daunting making Jean-Michel hate the project (like most of us), but the rewards make the love affair grow time and time again. A true passionate tuner enthusiast who enjoys sharing his pride and knowledge with this Subaru Impreza WRX to STi conversion.

Jean-Michel would like to thank MTK Tuning for all their help in the build and the support thus far.

The Specs

Exterior
Kaminari carbon  Fog Light Protection
Home made custom Headlights
HID Xenon lights
Led nightlights
Philips « Chrome vision » side repetitors bulb
Black side repetitors
Carbon Fiber Hood with carbon STI air intake
Carbon Cylinders Hood
No Side Skirts (STi Spec-c look)
Carbon mirrors
STI Spec-C  rear bumper + flares
Rear wing removed
Carbon trunk

Home made custom rear lights (2 fog lights instead of 1) with STi Spec-c protection cover
Tinted windows 95% back and 75% front

Interior
2005 Carbon custom center dashboard
Oil pressure, Zeitronix (EGT/BOOST/AFR) and oil temperature black Gauges with blue retro-lighting – center dashboard carbon mount
Gearbox oil temperature, clock and back deck oil temperature black Gauges with blue retro-lighting – window mount
All interior lights in blue
4 points 3? blue OMP harnesses

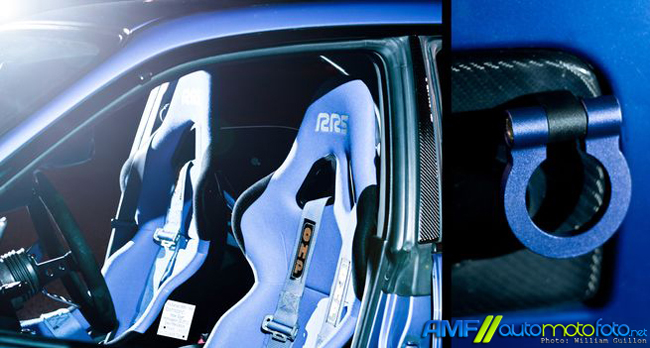

RRS fiber racing seats
Airbags removed
RRS steering wheel
2005 sunshade model
JDM STI9 180km/h odometer with blue retro-lighting
Home made adjustable DCCD with custom display in the dashboard

In Car Entertainment
Double DIN Car TFT tactile screen with CarPC

Wheels / Tires / Brakes / Suspension
18’’ x 8’’ custom finish Parotech Black Vampire (All Around)

Vredestein Sessanta 225/40ZR18 (All Around)

Carbon Front (25mm) and Rear (40mm Cusco) Strut Tower Bars

BC-racing Inverted Coilovers
Witheline Antilift kit

Front blue Cusco 22mm sway bar
Rear blue adjustable Cusco 22mm sway bar
Perrin Aluminium sway bars Links front and rear

STI front Rolling + hubs

STI rear Rolling + hubs

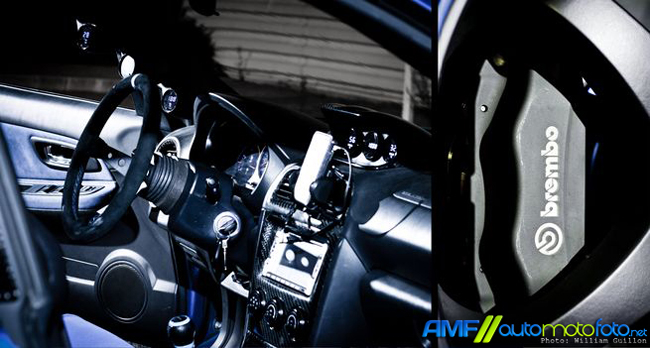

PSA Matt black Brembo caliper front
APP carbone 330×30 front disks
APP blue race brake pads
Goodridge Stainless Steel Brake Lines
ABS removed

Brembo Peugeot 406 V6 4-pot caliper black
Project µ SCR-pro disks
Ferodo DS2500 brake pads
hydraulic Wilwood hand brake (in OE hand brake)
Stainless Steel Brake Lines

Engine
– IHI VF34 (Version 7 Spec C) Ball Bearing Turbocharger
– (4) Subaru STi 565cc Fuel Injectors
– Walbro Fuel Pump
– AEM Cold Air Intake
– Helix Top Mount Intercooler
– Grounding Kit
– Electric Regulator
– Custom 3? Turbo-Back Exhaust (No Catalytic Converter)
– No Catalytic Converter on Up-Pipe
– HKS Turbo Manifold
– Perrin Turbo Inlet Hose
– GReddy Oil Catch Can
– EcuTek Flashed Management System (Dyno at 18psi > 305whp, 290lb/ft)
EJ25 STi SCD engine
1000cc Power System Fuel Injectors
TD06-20G twinscroll with 180° body mount
Anti fuel surge system
Bosh 300 l/h fuel pump
Aluminium fuel rail w/ aluminium hose fits
Aluminium pipping
Forge turbo piping
Mahle Low expansion forged pistons
Eagle forged rods
STi5 22B cylender head
5mm Spacers
In dash Subaru select monitor
Halleman system adjustable boost
Blue aluminium oil cooler
Front Kakumei aluminium cross-piece
Header Subaru Spec-c Twin-scroll JDM
HKS Power-silent exhaust
Up-pipe Spec-C twin-scroll JDM
HKS air intake filter
Blueu Oil catch tank
Supra 2JZ-GTE reverse FMIC
SARD  Dump-valve
SARD adjustable fuel pressure system
Carbon Radiator shroud
Aluminium Blue reversed mount “octopussy”
Battery support SPT blue and battery removed to the trunk
Oil cap SPT blue
And every parts that can come blue were added!

Transmission :
6 speed JDM DCCD gearbox with short 5th and 6th
Aluminium blue Gearbox oil radiator
Aluminium blue steering assist oil radiator
Cardans avants STI P. Solberg
Exedy Stage 3 clutch
Volant moteur allégé Stage 3 équilibré
Pont arriere DCCD JDM (pont court)
Arbre de transmission STI9 DCCD
Cardans arrieres STI P. Solberg
Carter de pont arriere radiateur à ailettes Perrin
Silent bloc de traverse de pont renforces

Weight : Est. 1170kg (No ABS, No Airbags, etc.)
