The PowerBass Hook-up

Speakers PAS Staff

Looking into over-hauling your vehicle's car audio equipment? Here's a list of car audio product offered by PowerBass.

POWERBASS SUBWOOFER
The M-1204D is the third generation of this popular subwoofer series offering proven performance. A 4-layer non-pressed paper cone uses a proprietary DDC coating for low distortion and maximum SPL. Optimally designed for both sealed and ported enclosures.

Model: M-1204D
Series: M-Series
Diameter: 12-Inch
Impedance: Dual 4-ohm
Power: 375 WRMS / 750 W Max
Mounting Depth: 5.5”
Cone & Surround: Non-pressed paper pulp cone and Santoprene surround
V.C. Former Material: 2-inch Black Aluminum
Basket: Stamped Steel
MSRP: $109.99
www.powerbassusa.com

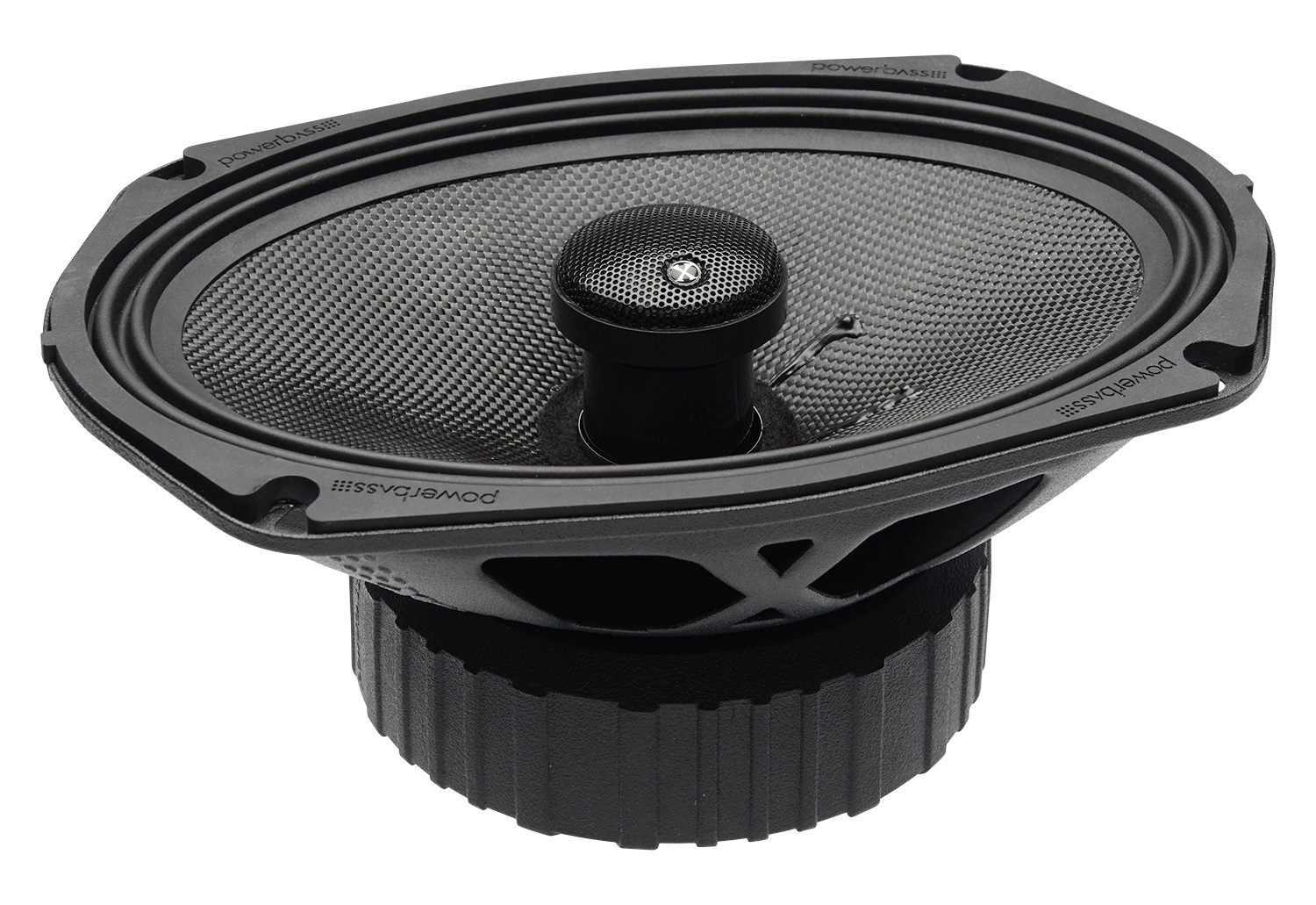

POWERBASS SPEAKER
The 3XL Series is the top of the PowerBass line. The 3XL-693 is a 6x9” 2-way coaxial that uses a unique Twill-woven S-2 Fiberglass cone that is both lightweight and strong. A special Double Roll surround works with the cone to produce deep powerful bass.

Model: 3XL-693
Series: 3XL Series
Size: 6x9” 2-way Coaxial
Cone/Surround: Twill Woven Fiberglass Cone and Dual Roll Rubber Surround
Tweeter: 1-inch Silk Dome
Power (RMS/Peak): 130 WRMS/250W Max
Basket: Stamped Steel
MSRP: $179.99pr
www.powerbassusa.com

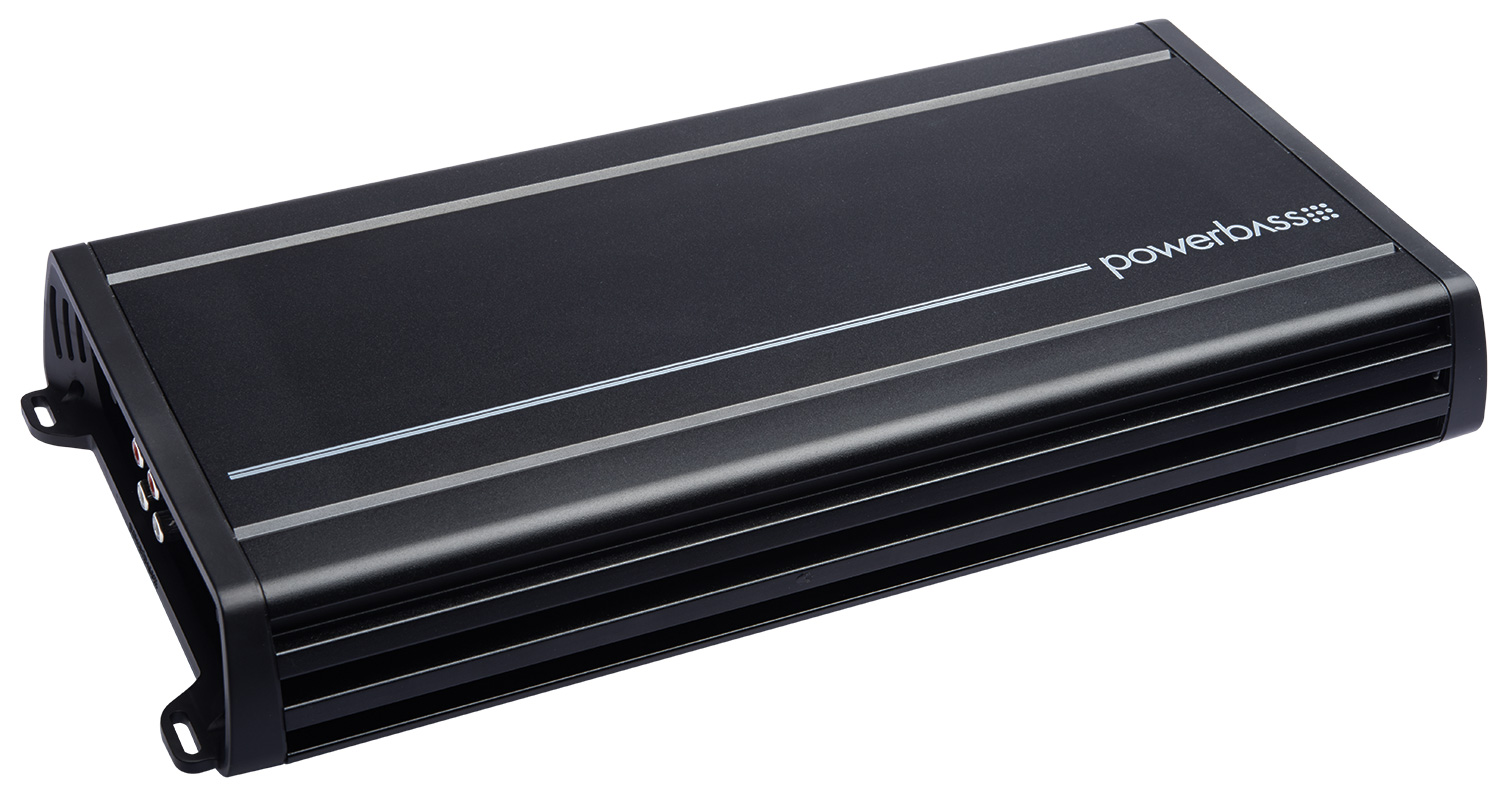

POWERBASS AMPLIFIER
Brand new for 2015, the ACS-4160 4-channel heads up this PowerBass compact amplifier series. Offering a choice of High or Low level inputs this MOSFET amplifier offers a fully adjustable electronic crossover network and selectable Bass EQ circuit.

Model: ACS-4120
Number of Channels: 4
Power Output: 120W x 4 @ 2-ohms (60W x 4 @ 4-ohms)
Topology: Class A/B
Crossovers: Yes. Variable High Pass (50Hz-1,000Hz) and Low Pass (35Hz-250Hz)
Equalization: Selectable Bass EQ 12dB (on/off)
Frequency Response: 10Hz-50Hz
S/N Ratio: >100dB
Dimensions: 14.8L x 7.1W x 2.0H
MSRP: $154.99
www.powerbassusa.com

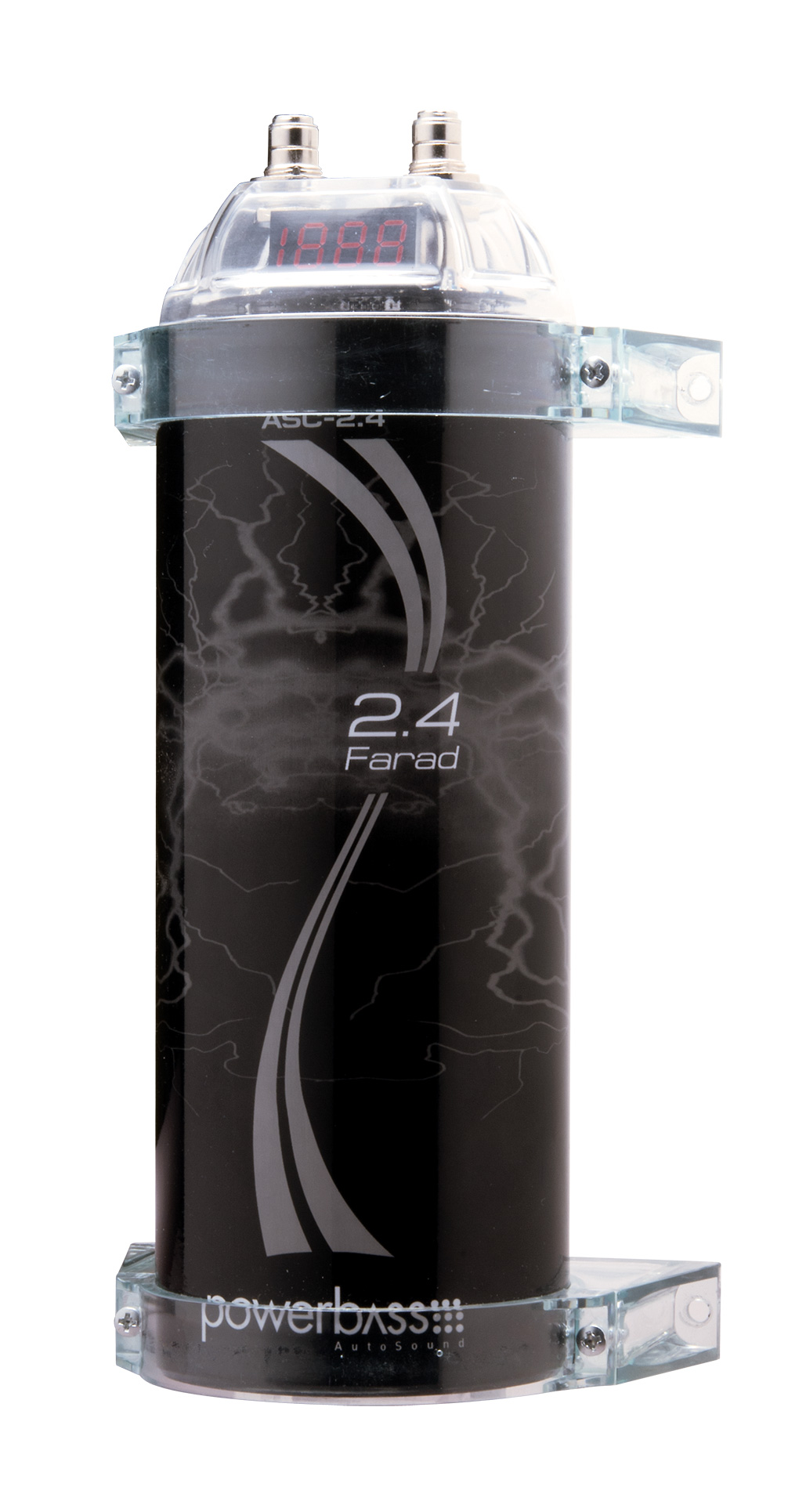

POWERBASS STIFFENING CAP (BATTERY)
Perfect for keeping some reserve power for a large amplifier this 2.4 Farad stiffening capacitor features a 4-digit red LED voltage readout protected by a clear polycarbonate cover. Supercharged with electrolytic fluid It can handle up to 20 volts DC. Includes mounting clamps.

Model: ASC-2.4
MSRP: $69.99
www.powerbassusa.com

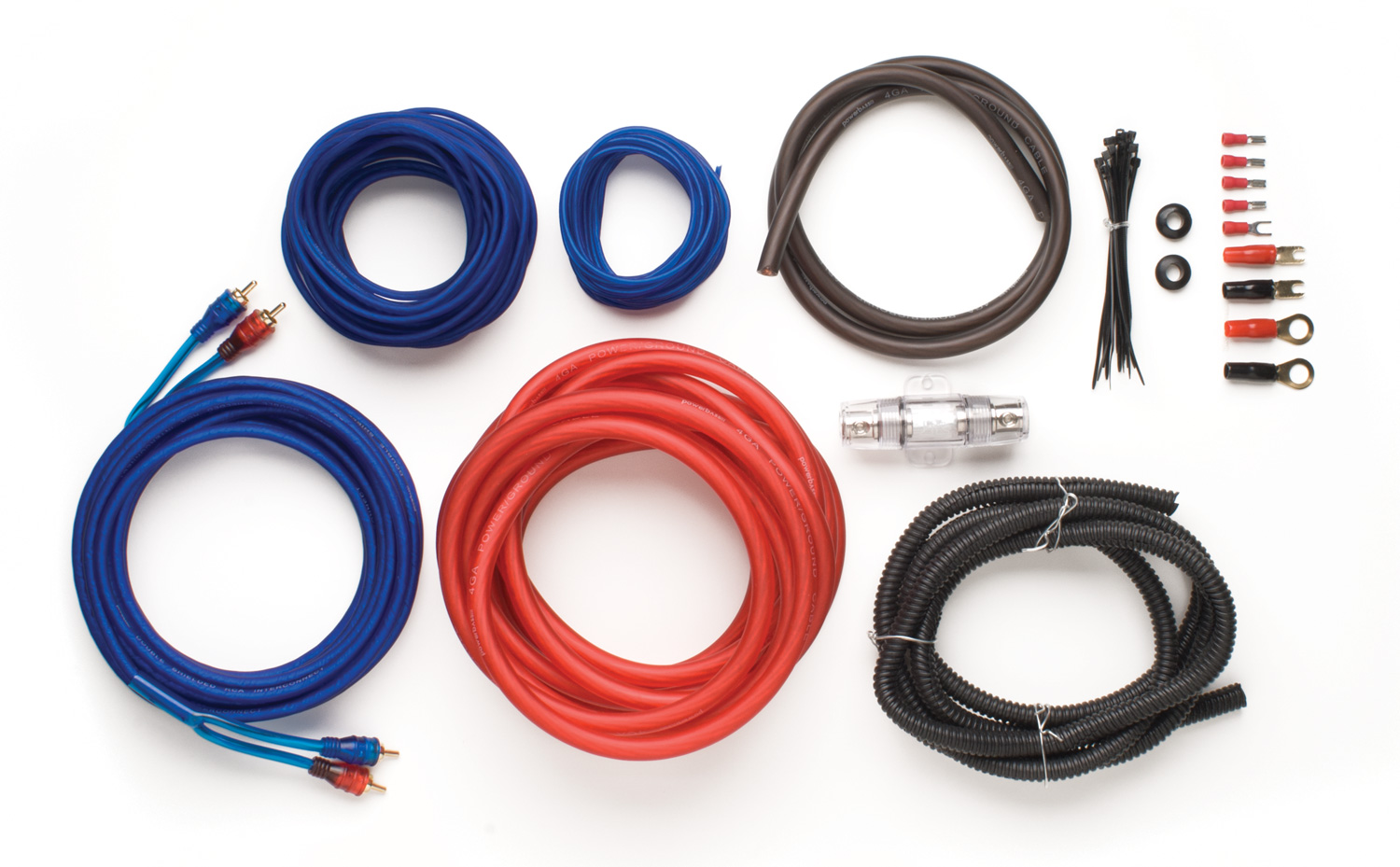

POWERBASS AMP KIT
4-GA Power and Ground wire are a 50/50 blend of CCA and Copper. Includes 80A AGU fuse and fuse holder, 17’ shielded RCA interconnect crimp rings and assorted hardware.

Model: AWK-40
MSRP $59.99
www.powerbassusa.com
