Illusion Audio Luccent L6CX Coaxial Speaker

Illusion Audio Luccent L6CX Coaxial Speaker

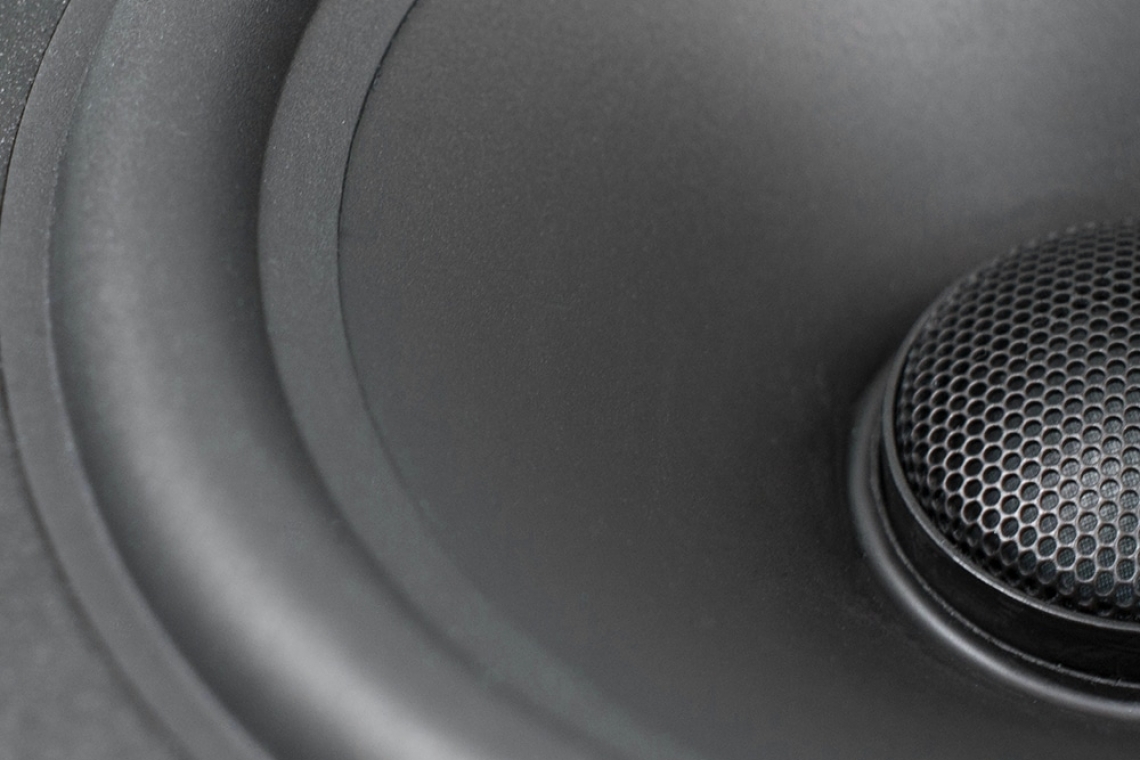

The Illusion Audio Luccent L6CX is a 6-inch coaxial speaker kit with a black polypropylene cone with rubber surround, cast aluminum basket, 25mm silk dome and point source tweeter.

FEATURES

  • Free Air Resonance: 68.19 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 v @ 1 meter : 89.1
  • Outside Diameter: 166.5 mm
  • Mounting Hole Diameter: 137.4 mm
  • Mount Depth: 80.3 mm
  • Point Source Tweeter
  • 25 mm silk dome
  • Bi Amp 12 dB crossover
  • Maximum Linear Excursion: ± 7.7 mm

For more information, visit www.illusionaudio-america.com.

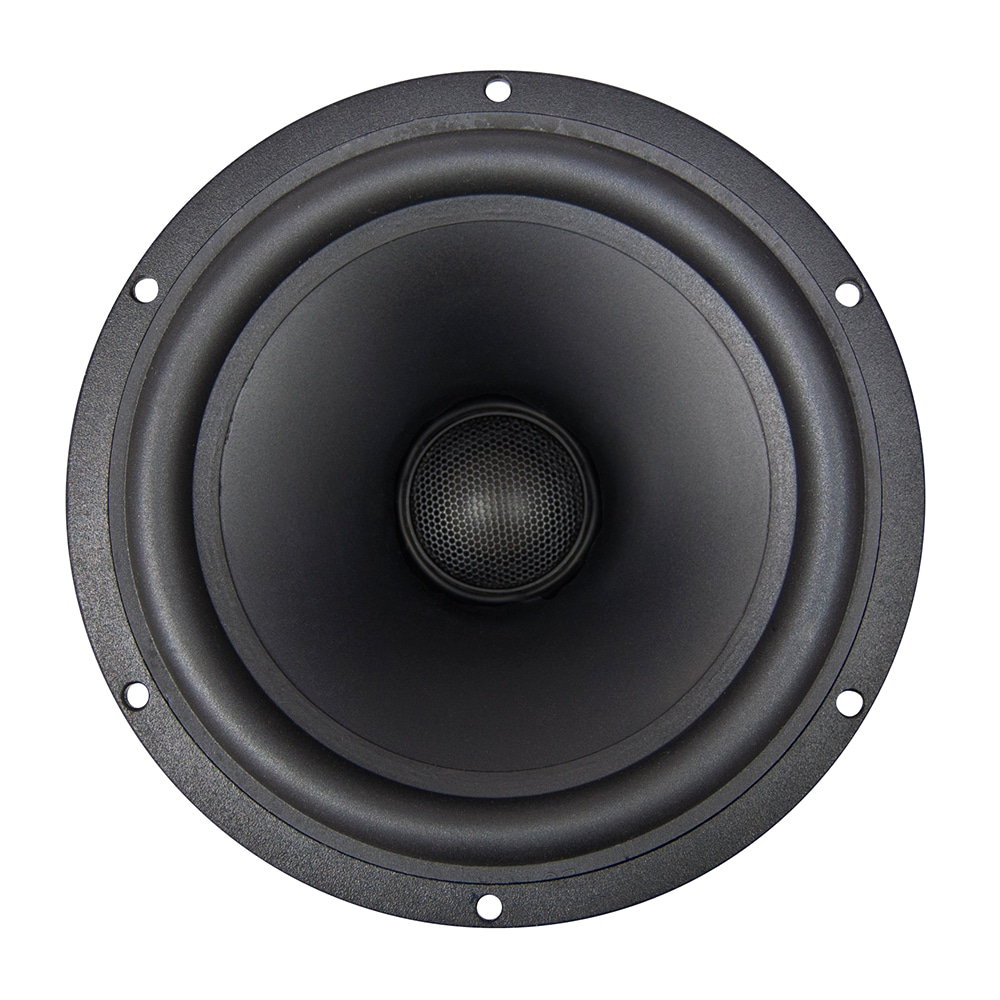

Illusion Audio Luccent L6CX Coaxial Speaker Kit pasmag 01

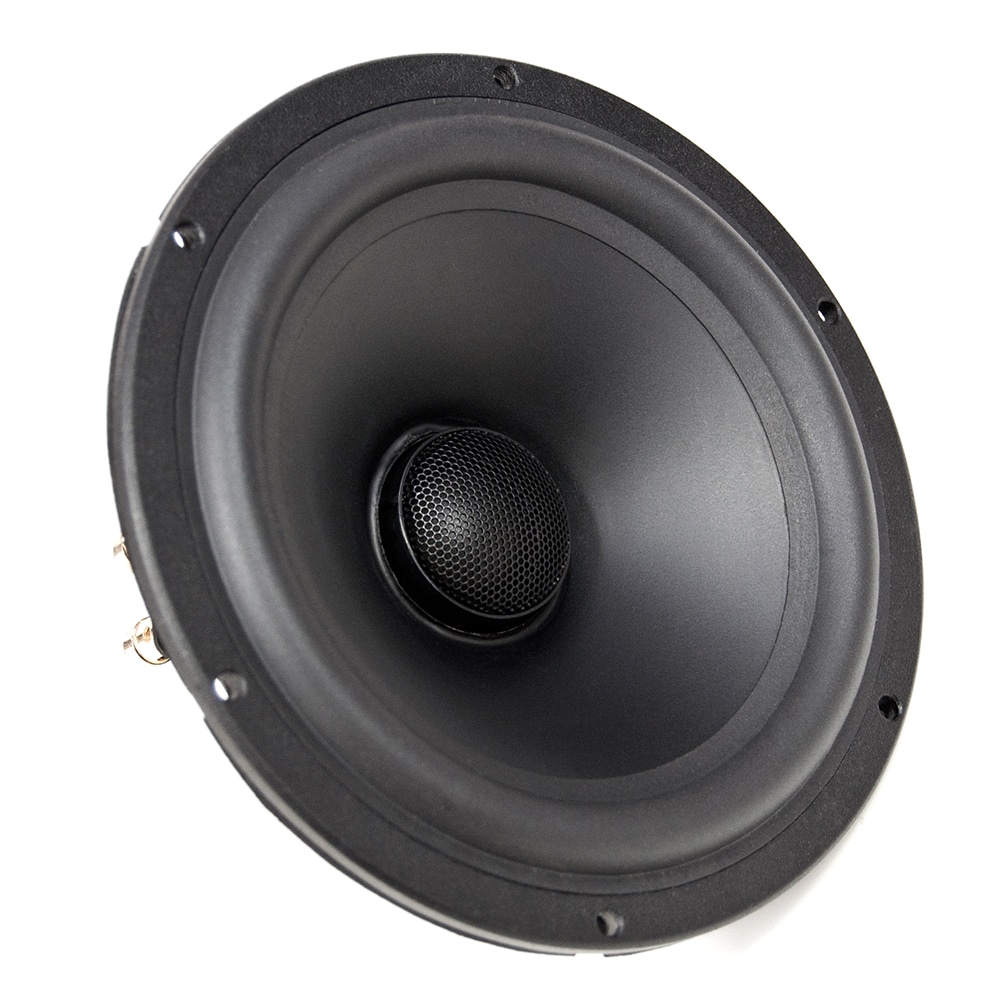

Illusion Audio Luccent L6CX Coaxial Speaker Kit pasmag 02

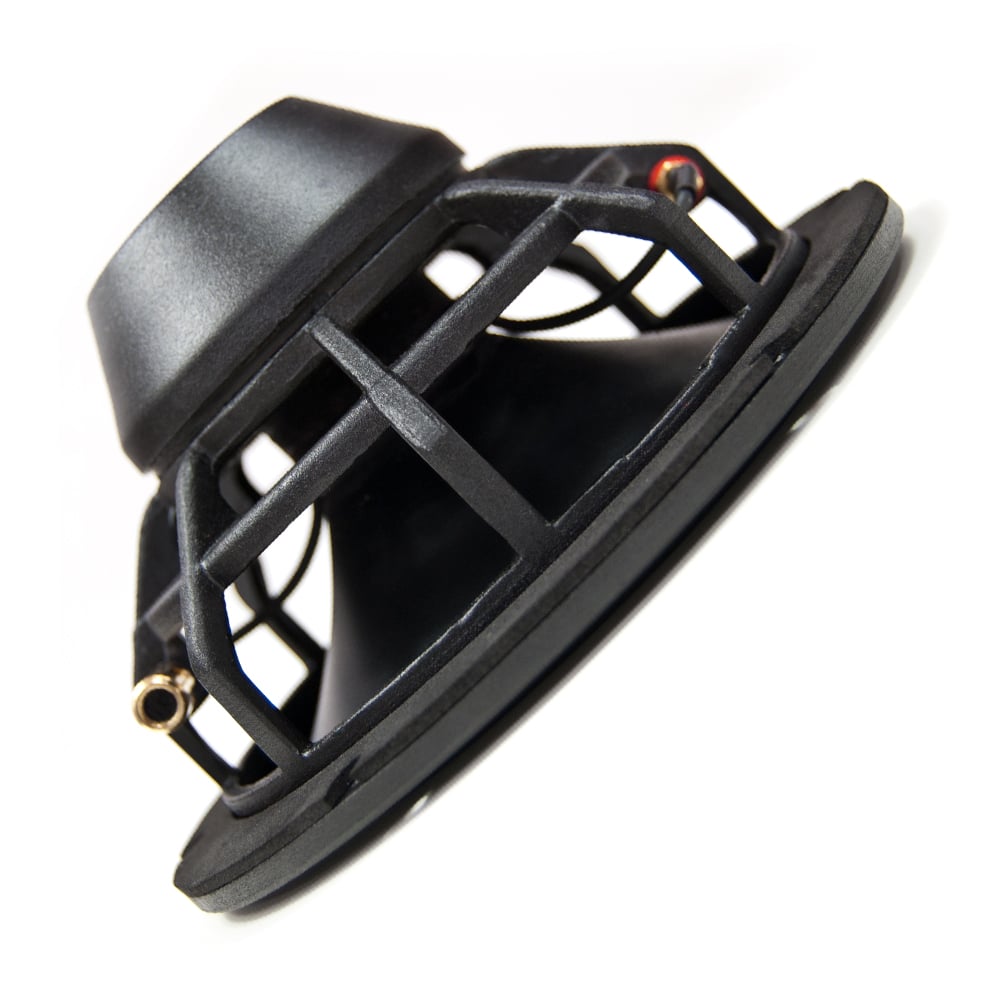

Illusion Audio Luccent L6CX Coaxial Speaker Kit pasmag 03

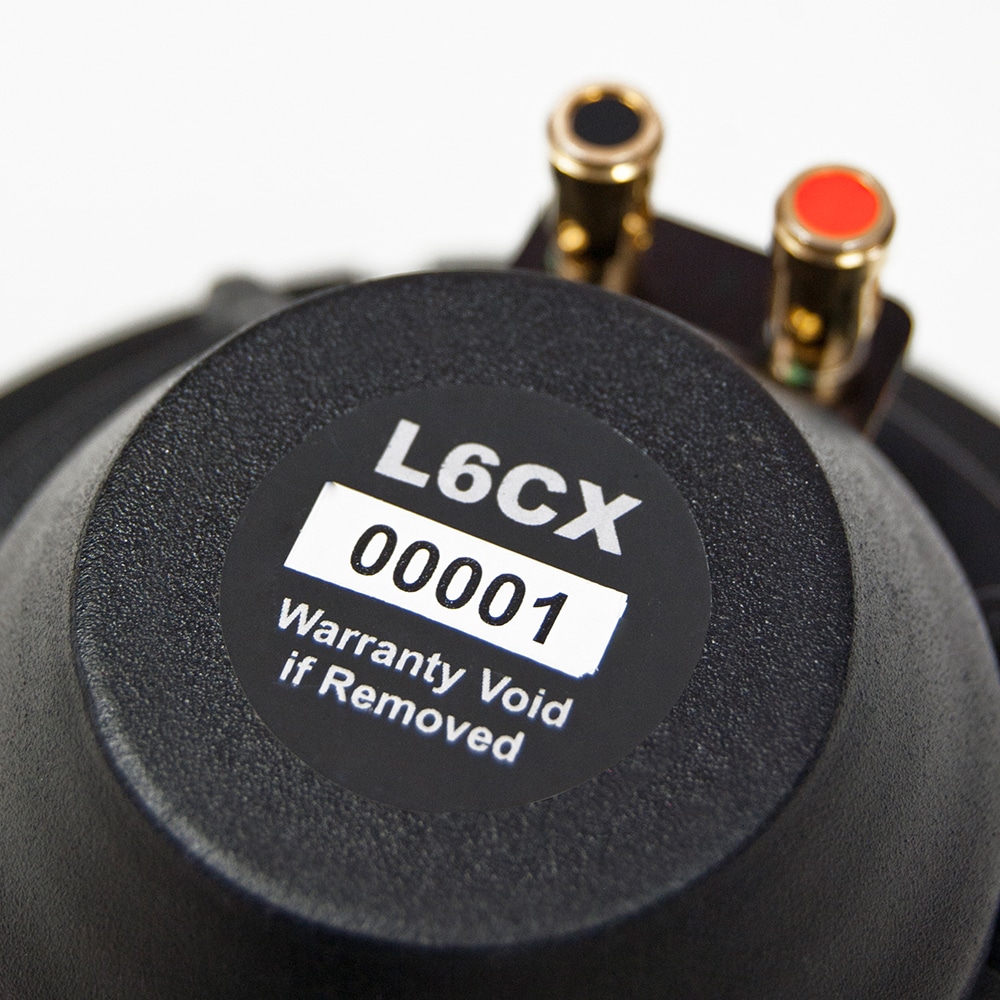

Illusion Audio Luccent L6CX Coaxial Speaker Kit pasmag 04
