The Phoenix Gold GX subwoofers are engineered for heart pounding performance and a breathtaking sound experience. These subwoofers feature advanced MLB and CFL3 technologies. Pair GX subwoofers with the GX amplifiers and create an unbeatable combination of sound quality and dynamic performance.
SPECIFICATIONS
- Nominal Impedance: 1.85 ohms
- DC Resistance (Re): 3.70 ohms
- Resonance Frequency: 21.23 Hz
- Piston Area (Sd): 0.0499 m2
- Force Factor (BL): 17.35 Tm
- Mechanical Q Factor (Qms): 3.63
- Electrical Q Factor (Qes): 0.30
- Total Q Factor (Qts): 0.27
- Sensitivity 1W/M (SPL): 87.44 dB
- Mechanical Compliance (Cms): 0.31 mm/N
- Moving Mass (Mms): 180.89 g
- Linear Excursion (Xmax): 9 mm
- Volume Acoustic Compliance (Vas): 107.90 Ltr, 3.81 cu ft
- Reference Efficiency (NO.): 0.33%
- Nominal Power (Pe): 400 Watts
- Peak Power: 800 Watts
- Frequency Response: 30-500 Hz
- Voice Coil Diameter: 2.5 in/63.5 mm
- Displacement: 0.10 cu ft/2.72 Ltr
- Overall Diameter 12.50 in/317.50 mm
- Cut Out Diameter: 11.25 in/285.75 mm
- Mounting Depth: 6.26 in/159 mm
FEATURES
- Dual Cone Design: to strengthen the rigidity of the woofer’s cone body to minimize the distortion while increasing the handling of high pressure produced in the subwoofer enclosure.

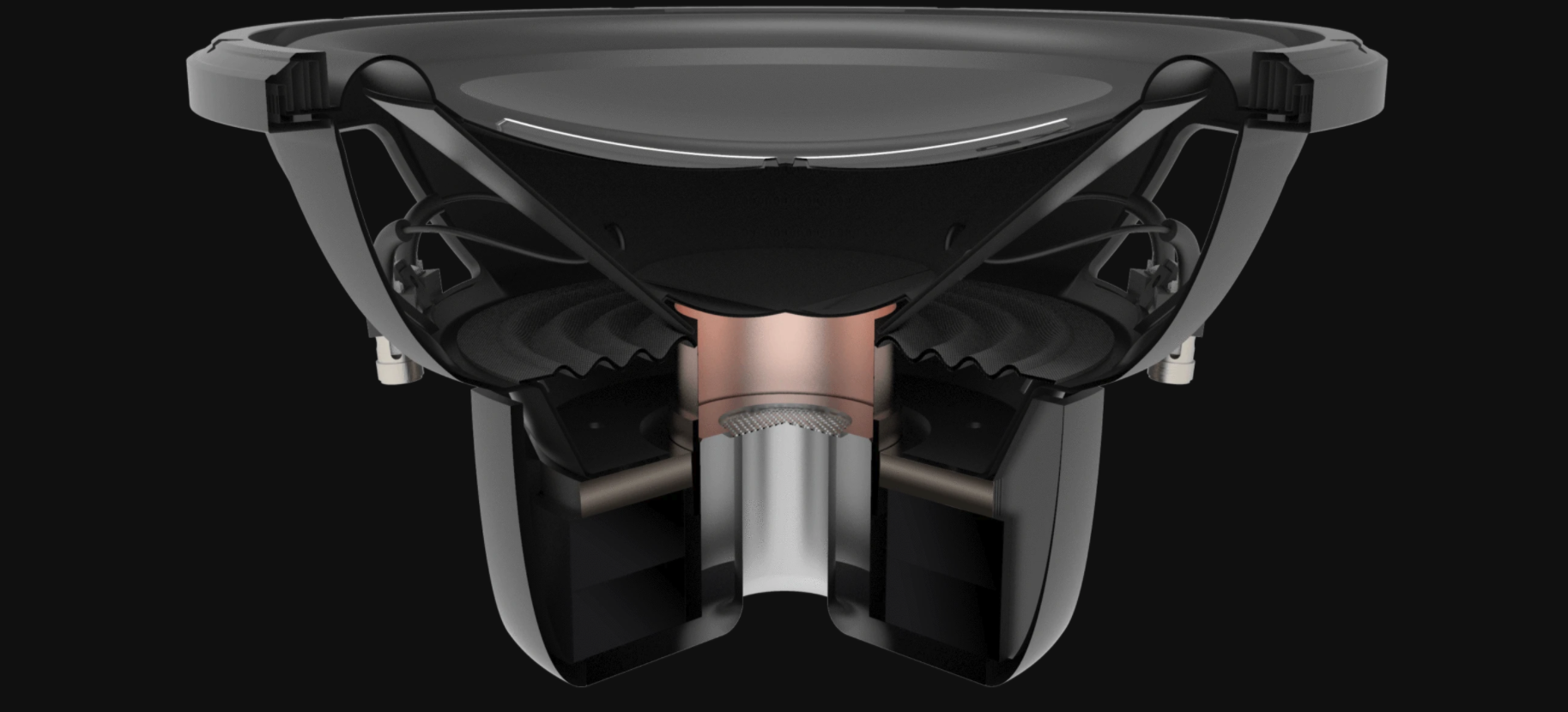

- Magnetic FEA High Efficiency Motor: provides highest possible, efficient motor design.
- Thermal Efficient Design via Vented Motor: providing better thermal efficiency, reduces motor compression and extended low frequency response.
- Reduced Motor Compression via Vented Motor.
- Double Looped and Sleeved Lead Wires for High Excursion: reduces wire roping and allows high excursion, increased flexibility and long life.

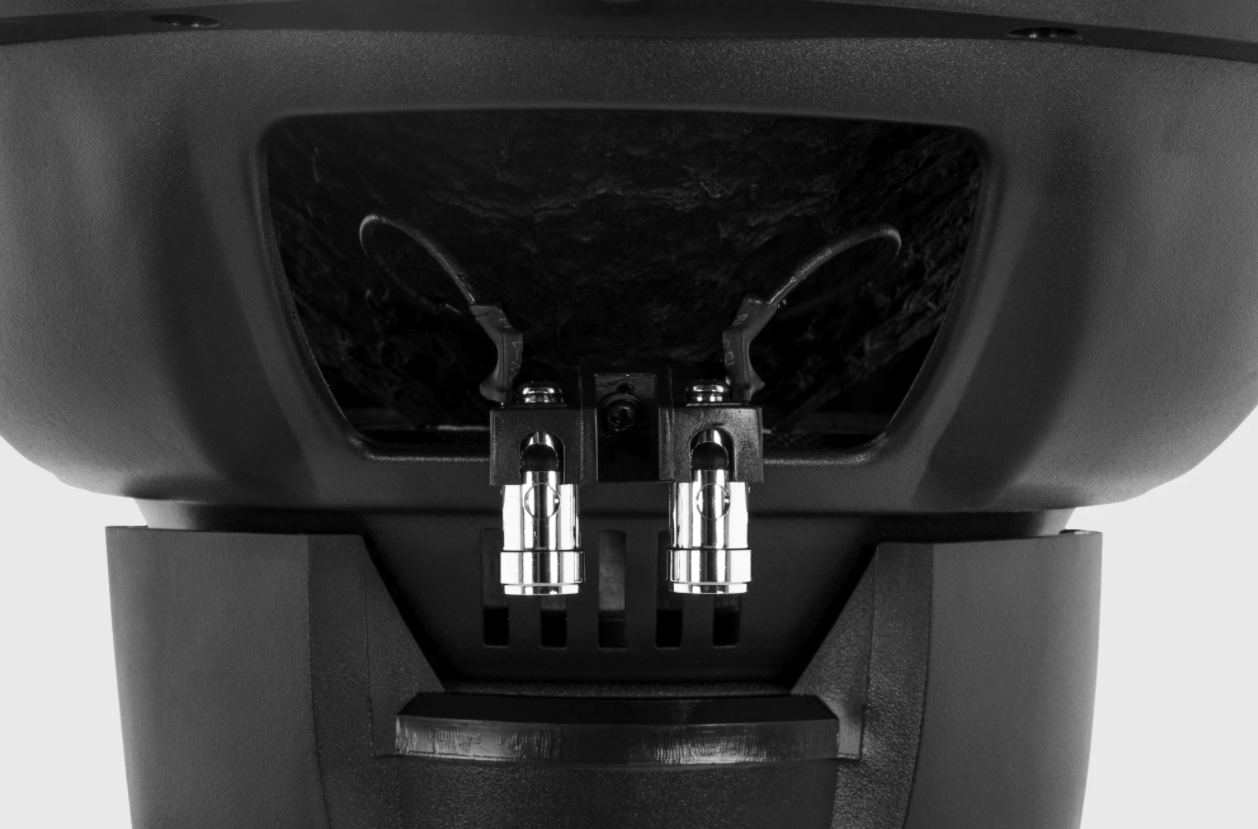

- Special Push Type Terminals with Short Prevention.
- BEEF’ed Up: Bent Edge Enhanced Frame- minimizes overall resonance and provides accurate sound with less distortion.
- Linear Surround Technology: for high excursion.
- Black Anodized Voice Coil Former: heat dissipation.
- CFL³ Technology Voice Coil: 3x more structurally rigid, prolonging the life of voice coil.
- MLB Collar Technology: enables micro level bonding with cone & spider for increased strength.
- Linear Long Throw Spider Suspension: for increased output and power handling.
- Large 2.5” Voice Coil: GX12D4, GX12D4, GX10D4, GX10D2 and 2” Voice Coil for GX8D4, GX8D2.
- Removable Gasket for adding grills: G112 Grill (GX12D4 / GX12D2) G110 GX10D4 / GX10D2).
MSRP (USD)
- $275.00
For more information, visit phoenixgold.com.
