The PASMAG Project IQ was ready for some entertainment upgrades, so we took it to see Franky “Crazy” Valenti at 20Hz Audio Sound & Security with the goal to transform this cool little run-about into something truly memorable. With some help from Clarion, Wirez, Lumens and LG, the diminutive Scion iQ has been transformed into a mobile theatre that rivals some of the full-sized theatres we used to visit when we were kids! Check out the behind-the-scenes action and see how the audio system came to fruition.

Project Scion: 2012 Scion iQ Entertainment Upgrades

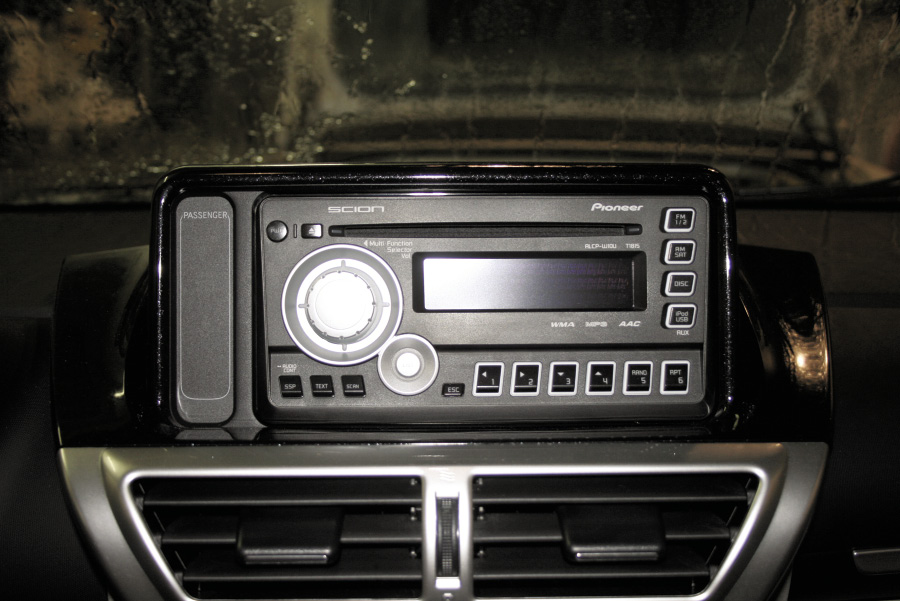

The factory radio is ready to be relegated to paper weight duty.

Project Scion: 2012 Scion iQ Entertainment Upgrades

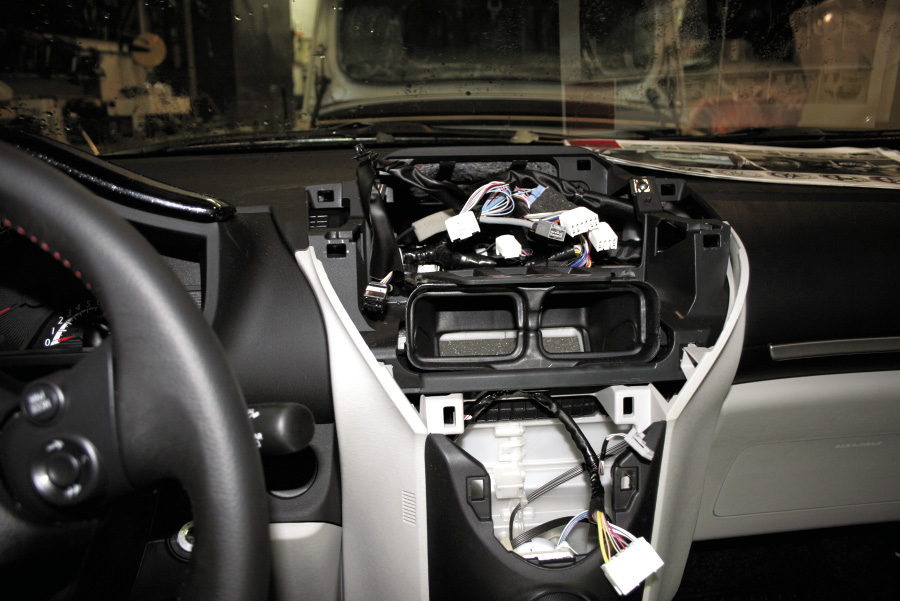

Valenti and crew remove the basic factory radio in preparation for a Clarion NX501 Multimedia Station.

Project Scion: 2012 Scion iQ Entertainment Upgrades

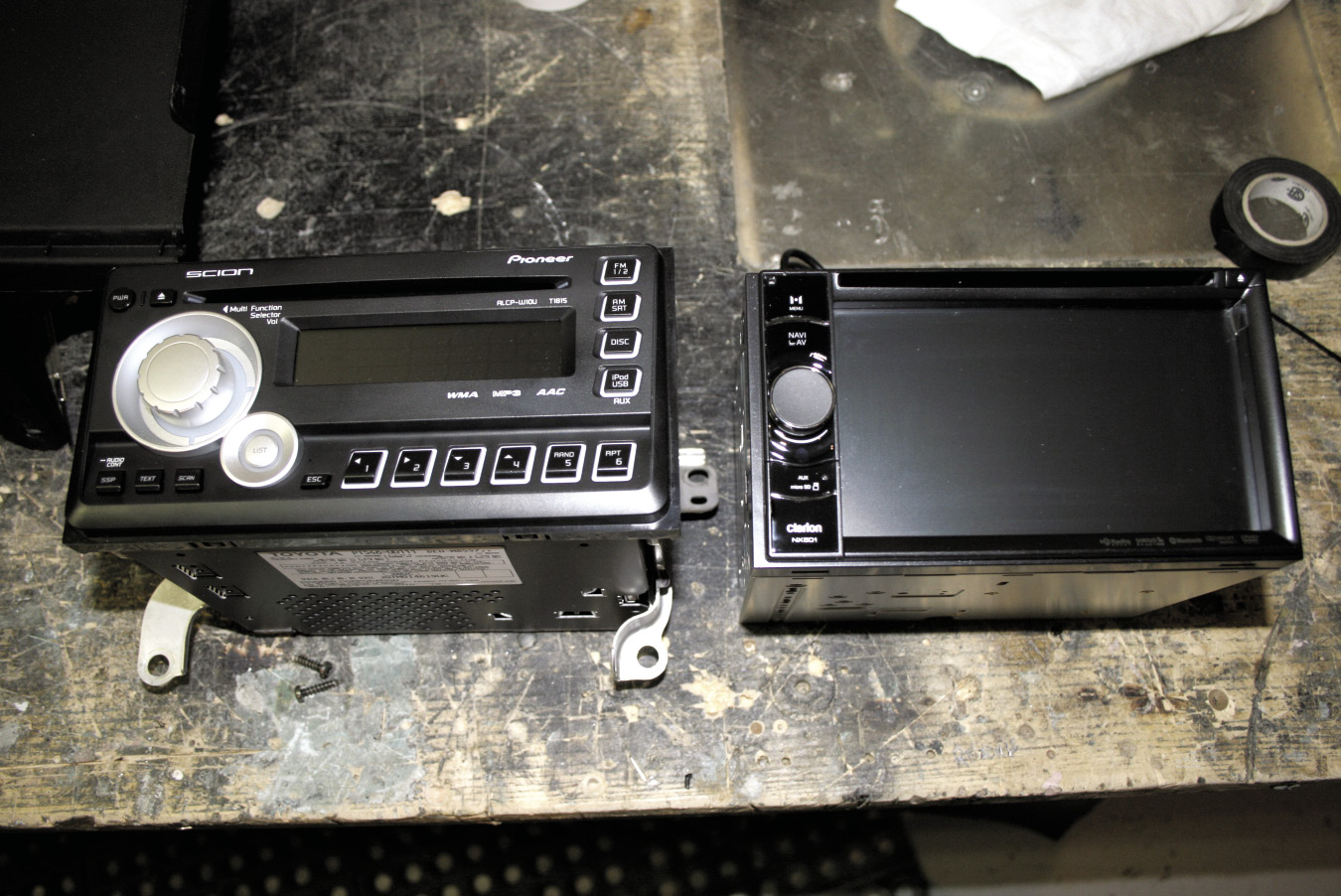

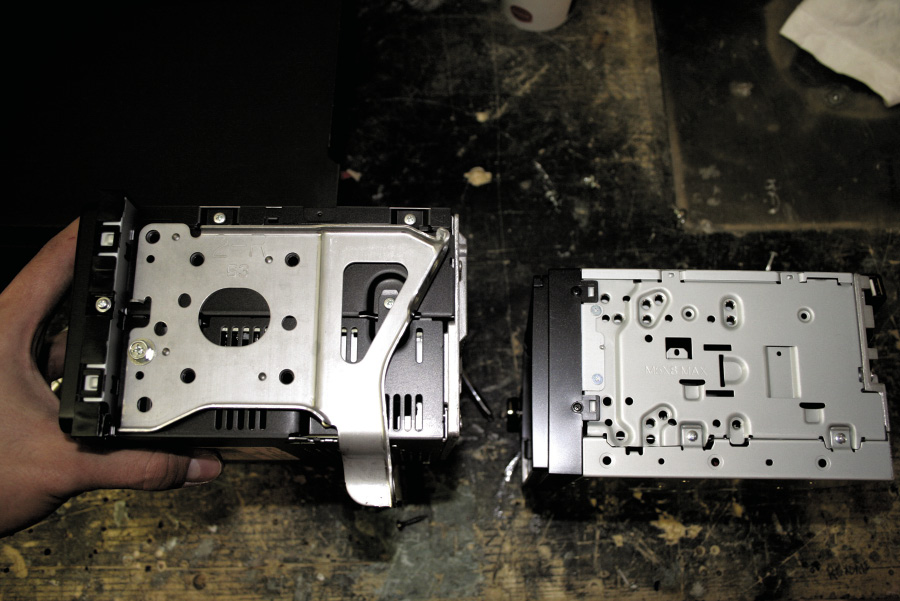

Here you can see the chassis is similar in size, but the factory radio has an oversized face. We’ll take a high-resolution touchscreen over big buttons any day.

Project Scion: 2012 Scion iQ Entertainment Upgrades

The factory mounting brackets transfer over to the Clarion without any problem.

Project Scion: 2012 Scion iQ Entertainment Upgrades

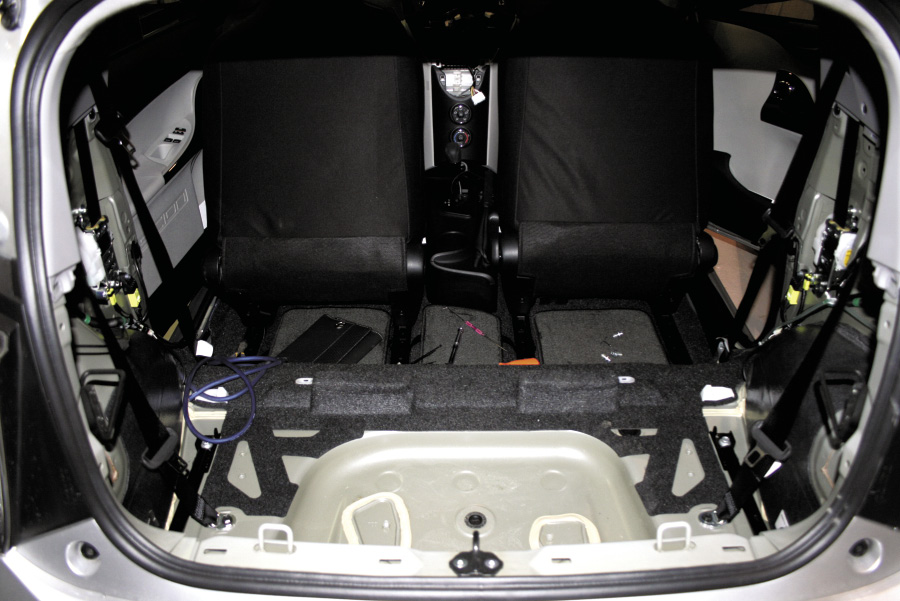

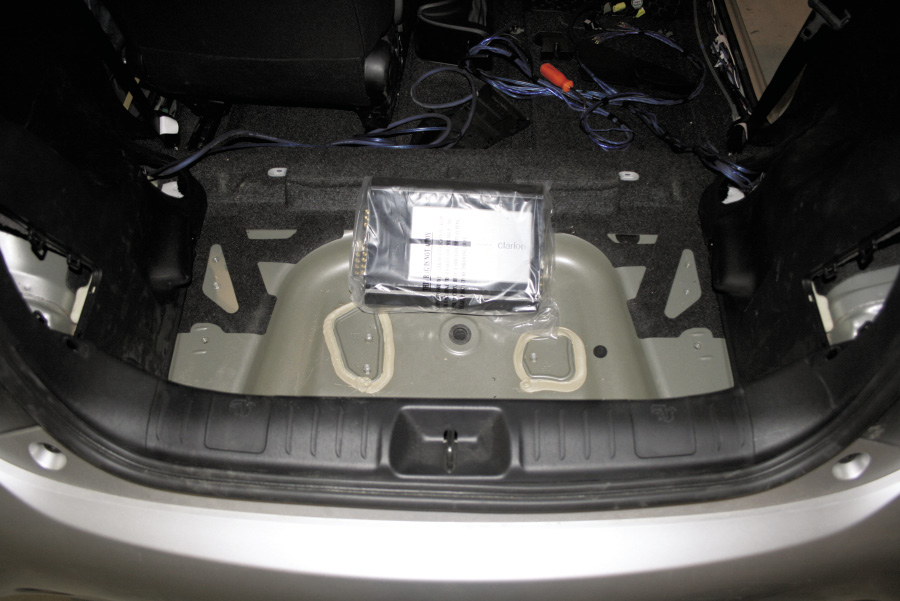

The rear of the car is stripped in preparation for wiring and a subwoofer enclosure.

Project Scion: 2012 Scion iQ Entertainment Upgrades

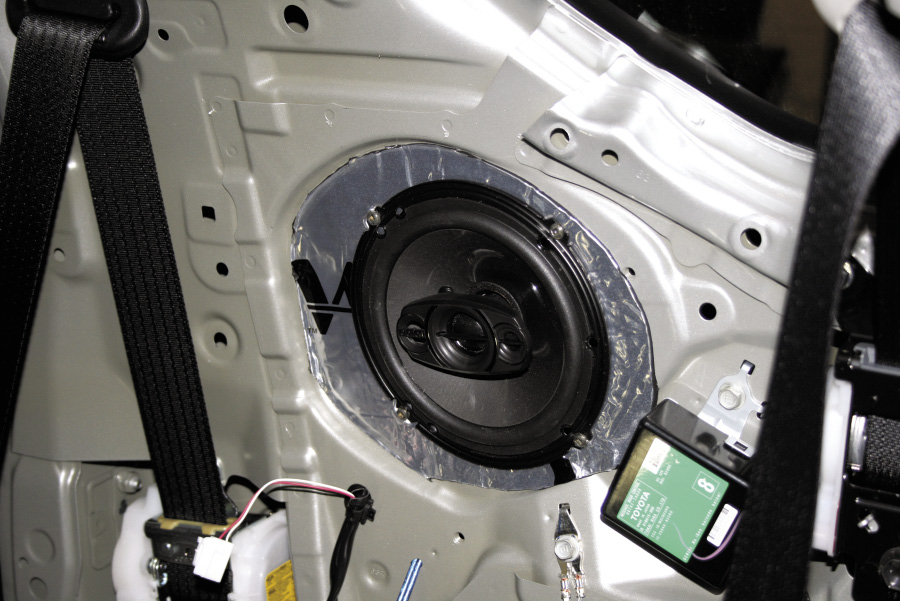

Clarion SRQ1632R three-way speakers mounted on Wirez Premium Sound Deadening are installed to provide sound in the back.

Project Scion: 2012 Scion iQ Entertainment Upgrades

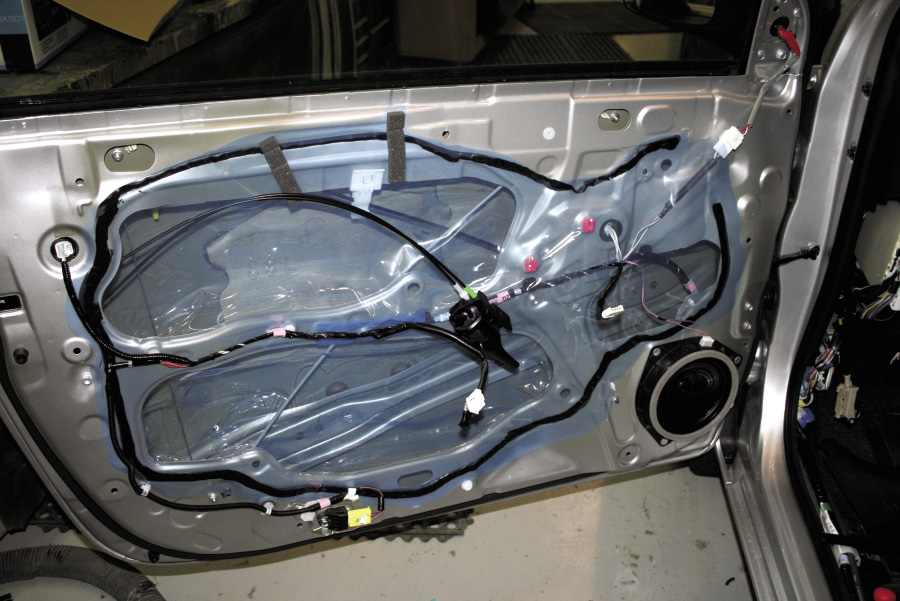

The stock door is ready for Wirez Premium Sound deadening and new speakers.8Etched Plexiglas with the 20Hz Audio logo fills the new opening.

Project Scion: 2012 Scion iQ Entertainment Upgrades

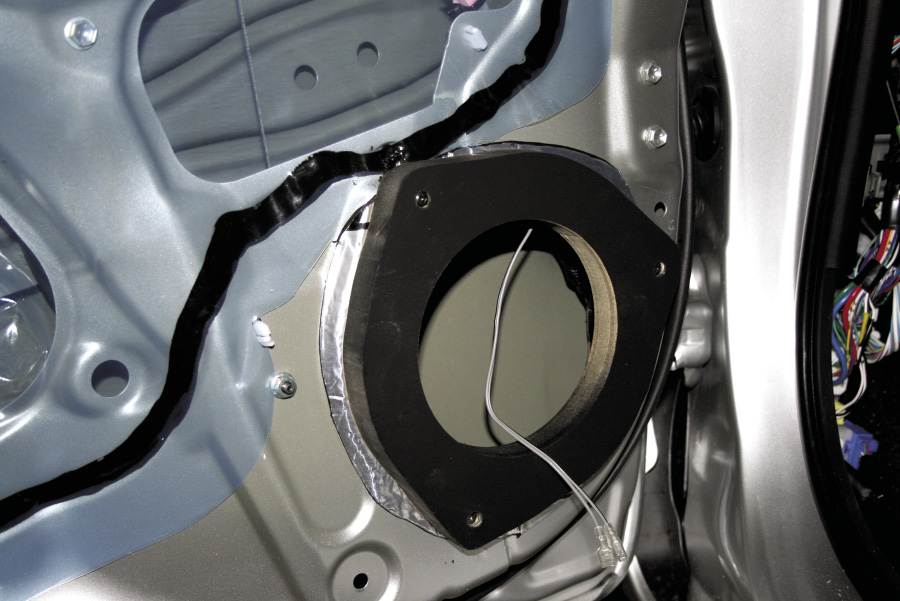

The doors are deadened and custom plates are made for another set of Clarion three-way speakers.

Project Scion: 2012 Scion iQ Entertainment Upgrades

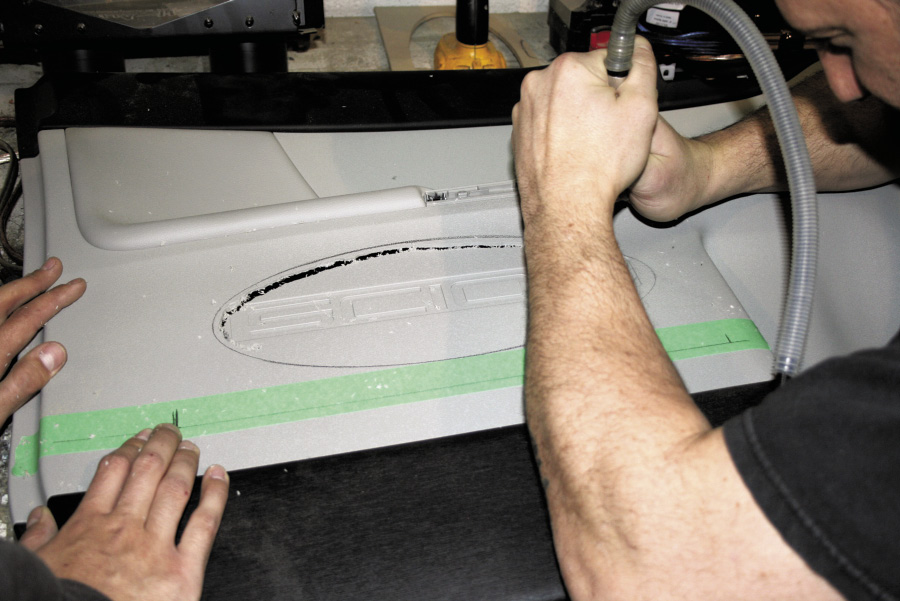

The Scion logo is cut out of the door with a rotary tool.

Project Scion: 2012 Scion iQ Entertainment Upgrades

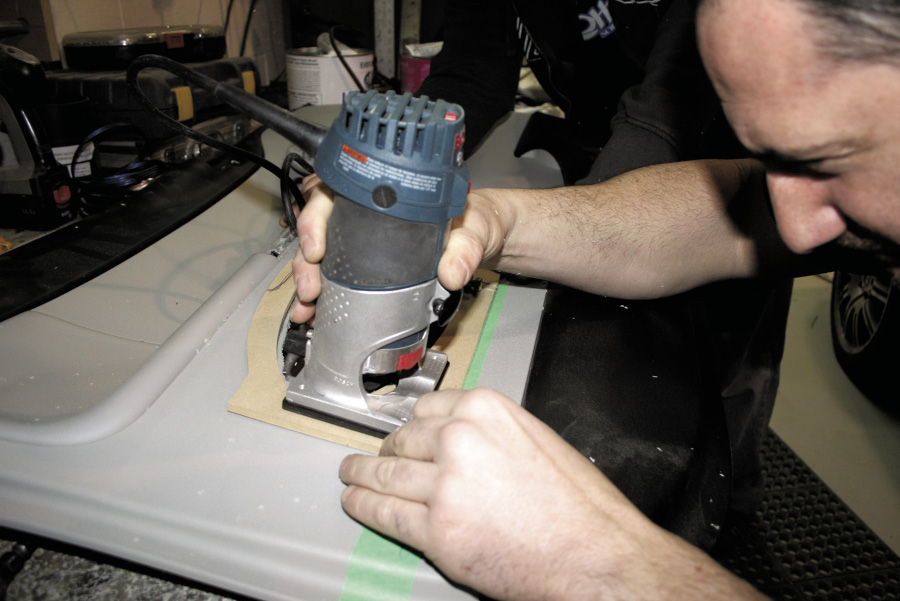

The door is then trimmed with a small router to provide a smooth edge.

Project Scion: 2012 Scion iQ Entertainment Upgrades

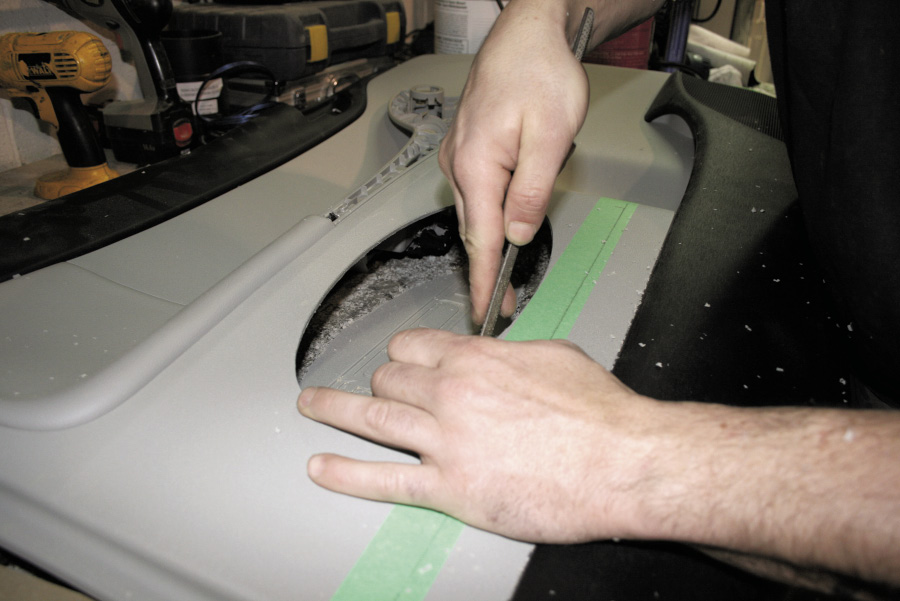

A little hand-filing work makes sure the edge is perfect.

Project Scion: 2012 Scion iQ Entertainment Upgrades

Suede-covered trim piece is cut and put in place.

Project Scion: 2012 Scion iQ Entertainment Upgrades

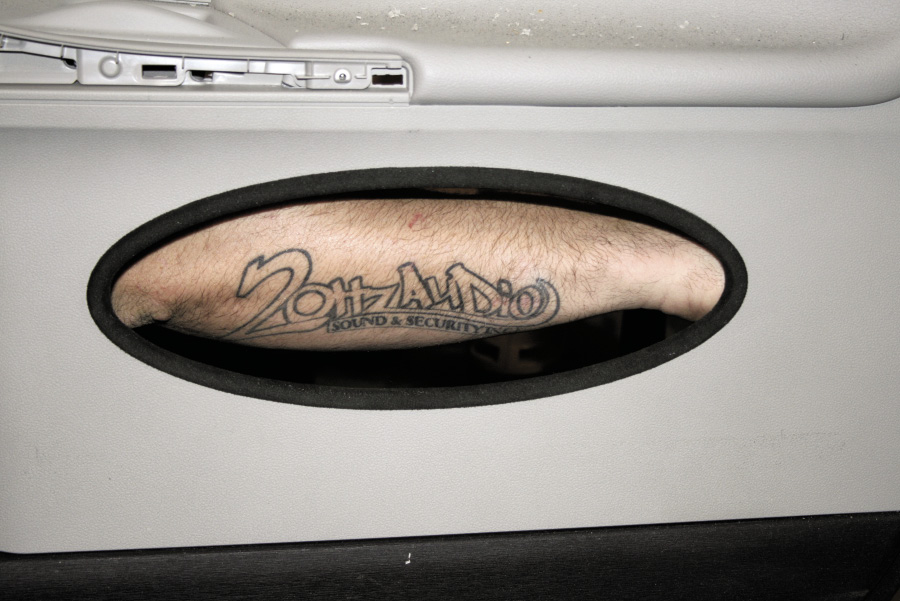

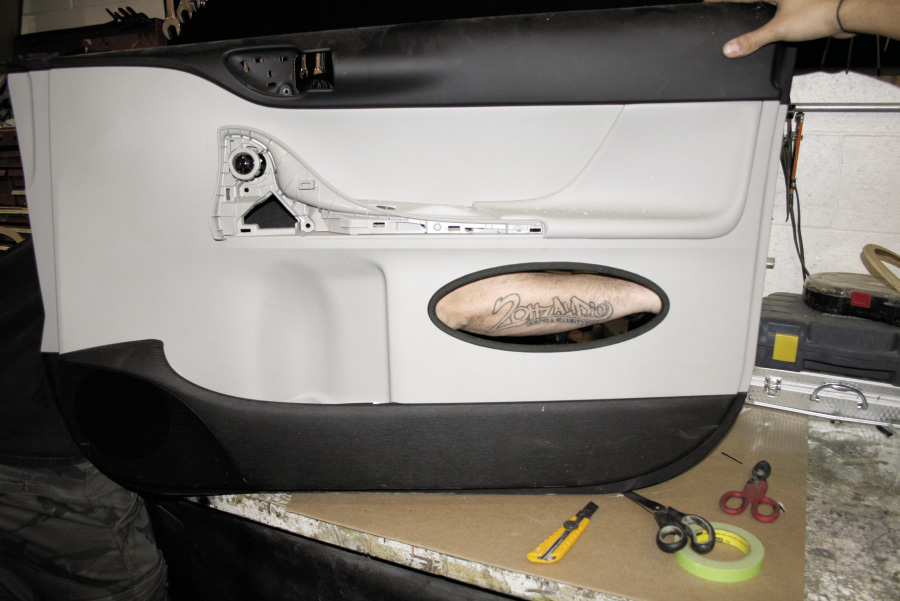

Test fitting for the logo size. Yep, forearm looks about the right size.

Project Scion: 2012 Scion iQ Entertainment Upgrades

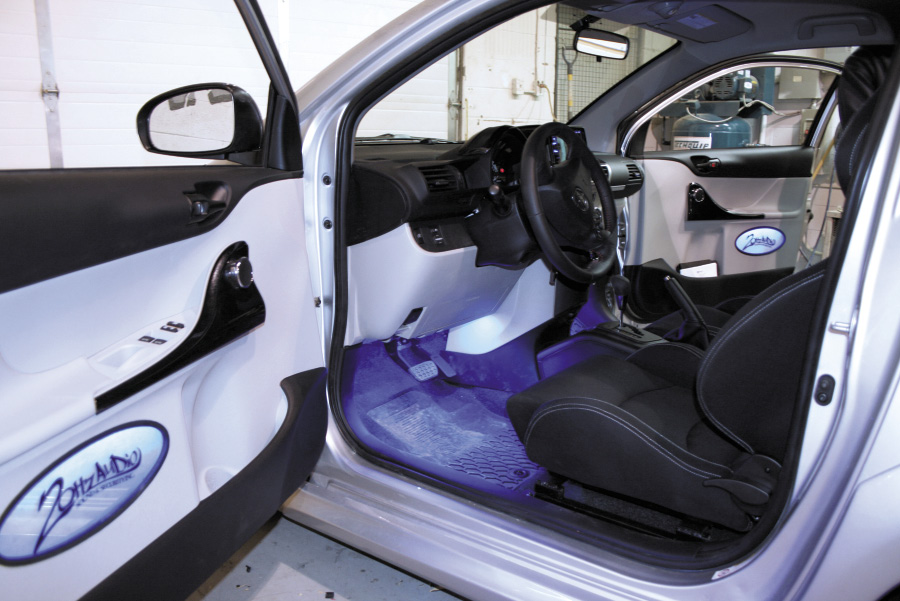

Etched Plexiglass with the 20Hz Audio logo fills the new opening.

Project Scion: 2012 Scion iQ Entertainment Upgrades

Wiring is run through the car and the location for the amplifier chosen.

Project Scion: 2012 Scion iQ Entertainment Upgrades

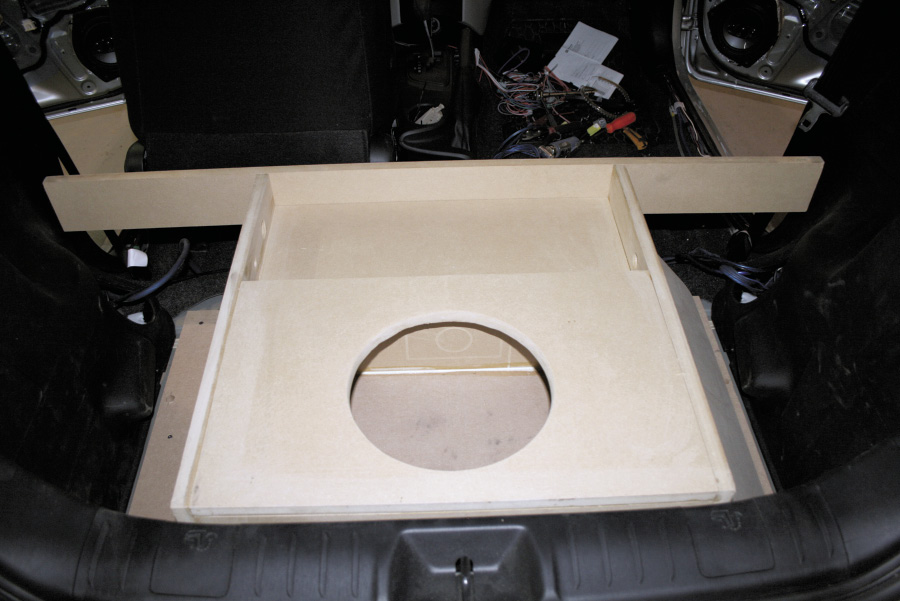

Custom amp rack and subwoofer enclosure are created from MDF.

Project Scion: 2012 Scion iQ Entertainment Upgrades

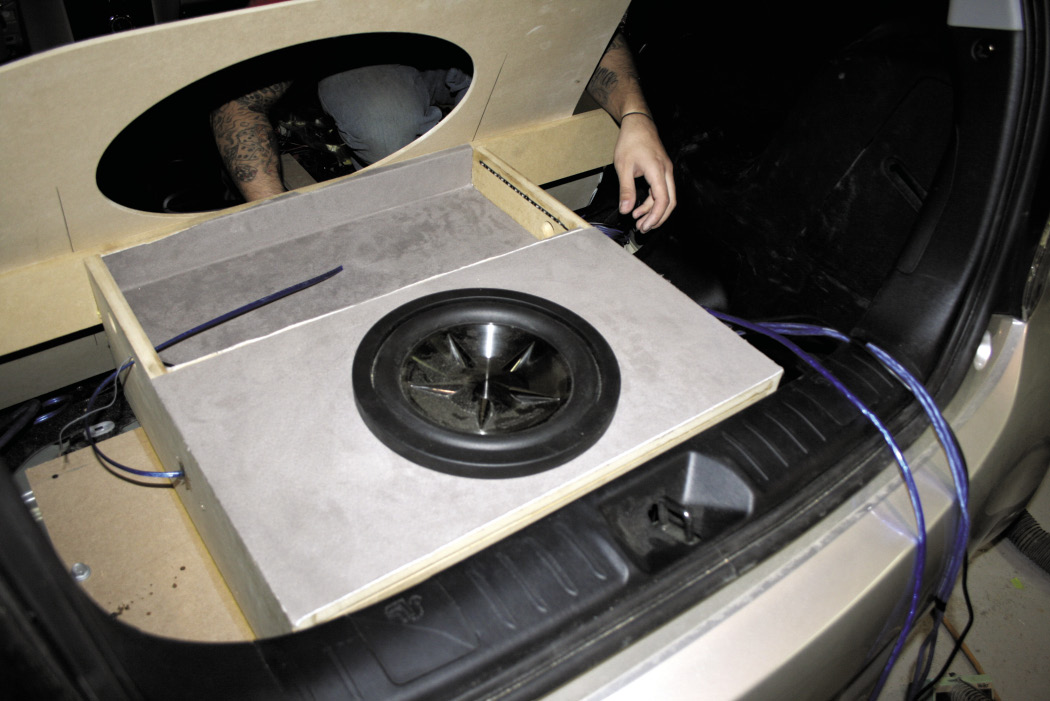

Light grey suede trims around the Clarion PXW1051 10-inch subwoofer.

Project Scion: 2012 Scion iQ Entertainment Upgrades

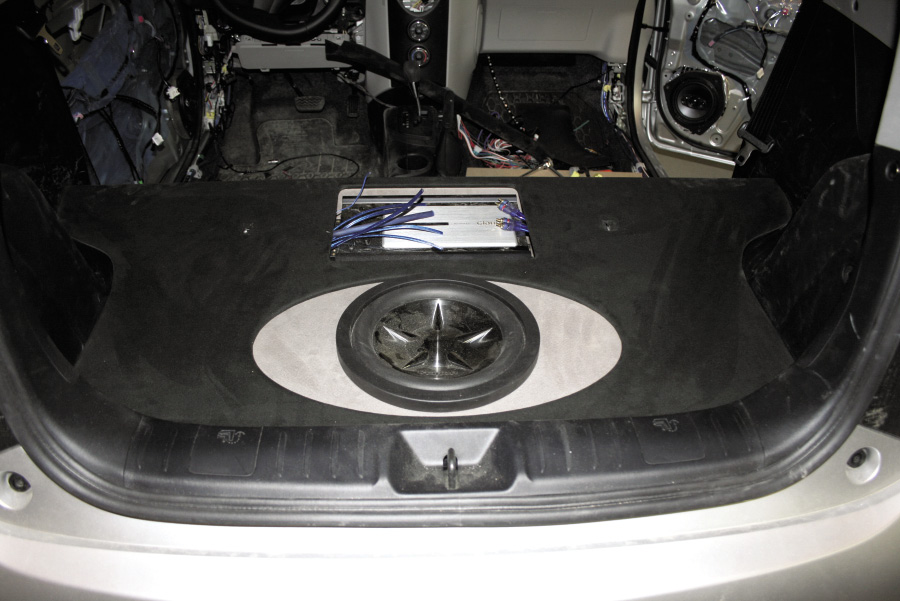

A black suede trim panel surrounds the sub and a Clarion XH5410 four-channel amplifier.

Project Scion: 2012 Scion iQ Entertainment Upgrades

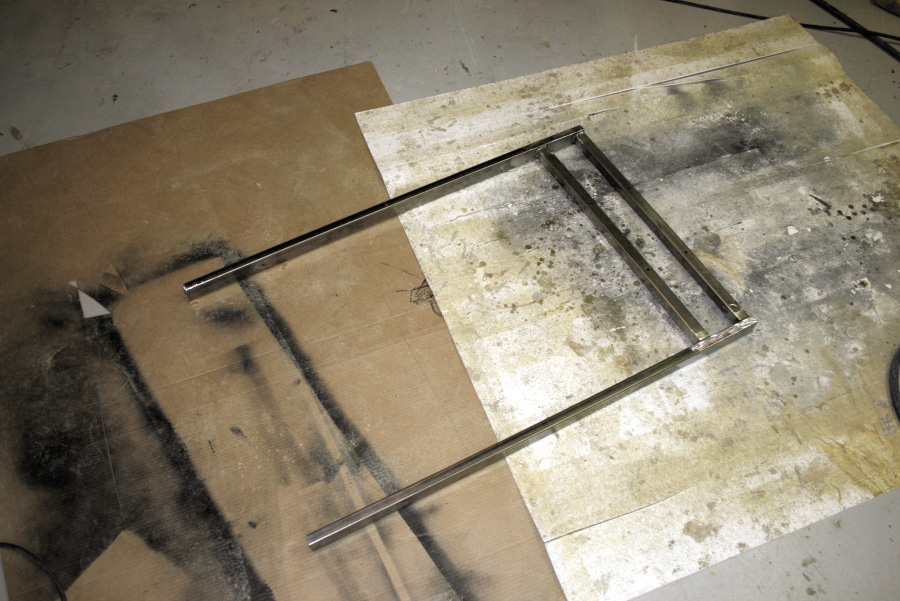

An aluminum bracket is welded together to support an LG flat panel TV that will fill the rear of the iQ.

Project Scion: 2012 Scion iQ Entertainment Upgrades

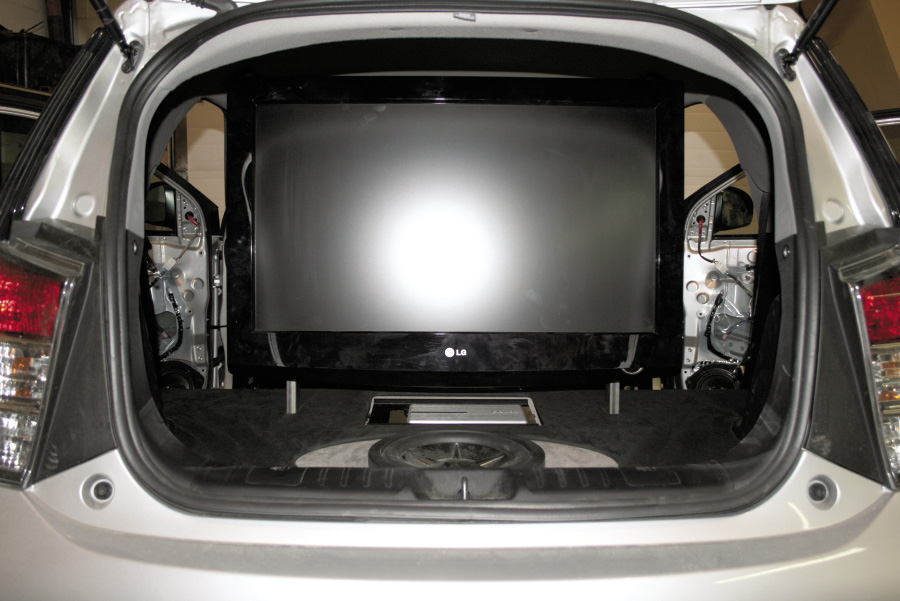

The big LG TV in place.

Project Scion: 2012 Scion iQ Entertainment Upgrades

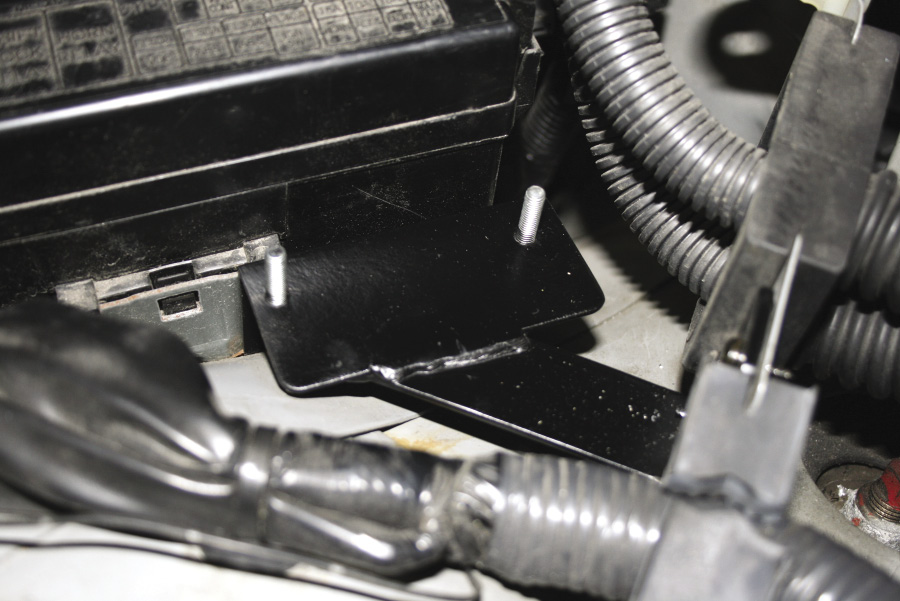

A custom bracket is made to hold the battery protection device in place.

Project Scion: 2012 Scion iQ Entertainment Upgrades

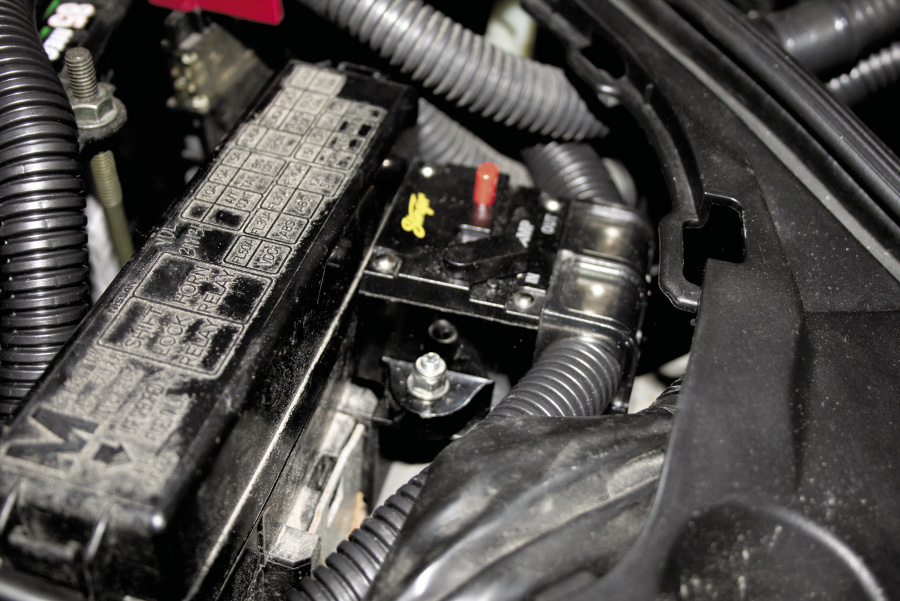

A Stinger circuit breaker is used to protect the little factory battery.

Project Scion: 2012 Scion iQ Entertainment Upgrades
The car back is together with some blue illumination adding some style.

Project Scion: 2012 Scion iQ Entertainment Upgrades

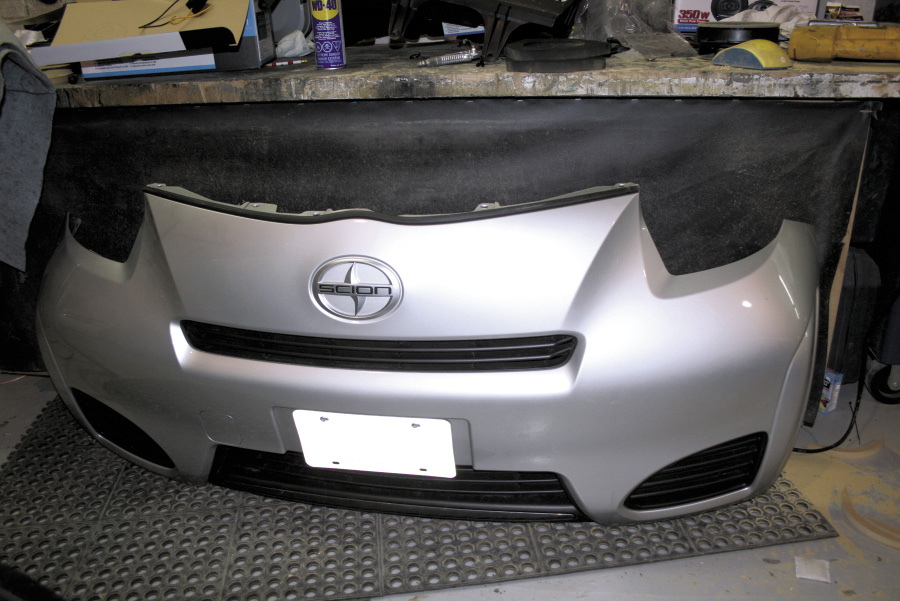

The tiny front bumper of the cool little Scion.

 Project Scion: 2012 Scion iQ Entertainment Upgrades

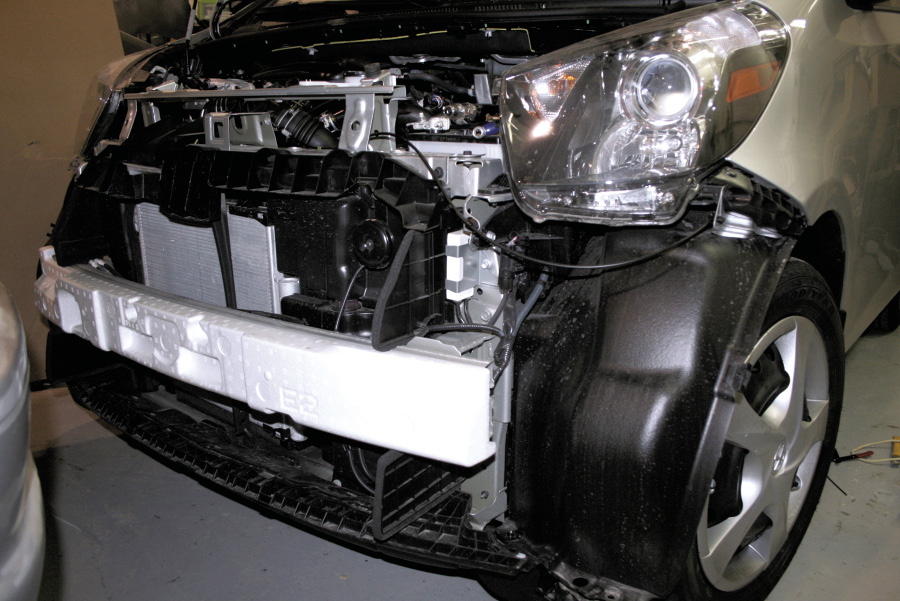

The front bumper is removed to allow for a tidy installation of HID headlight ballasts.

Project Scion: 2012 Scion iQ Entertainment Upgrades

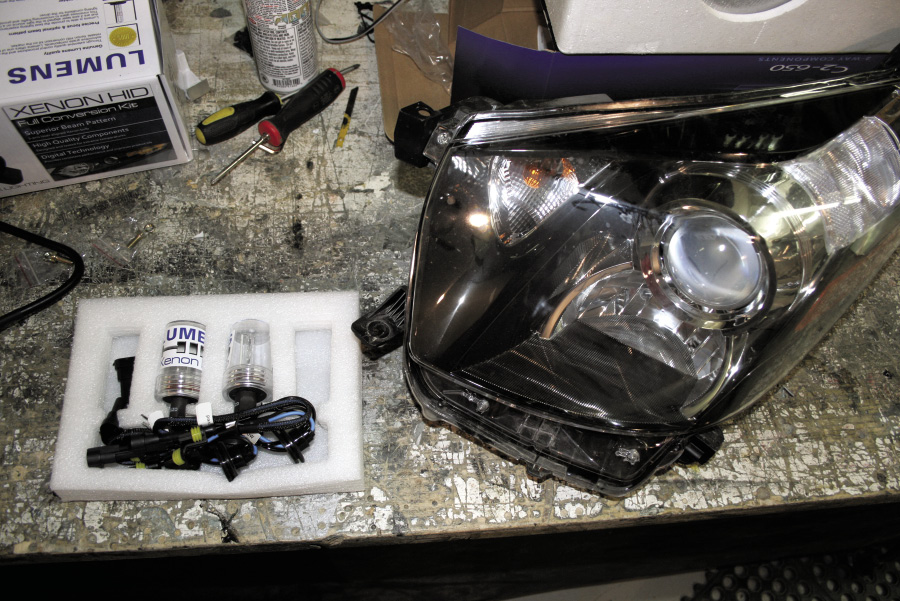

The factory projector assemblies are ready to accept the new bulbs.

Project Scion: 2012 Scion iQ Entertainment Upgrades

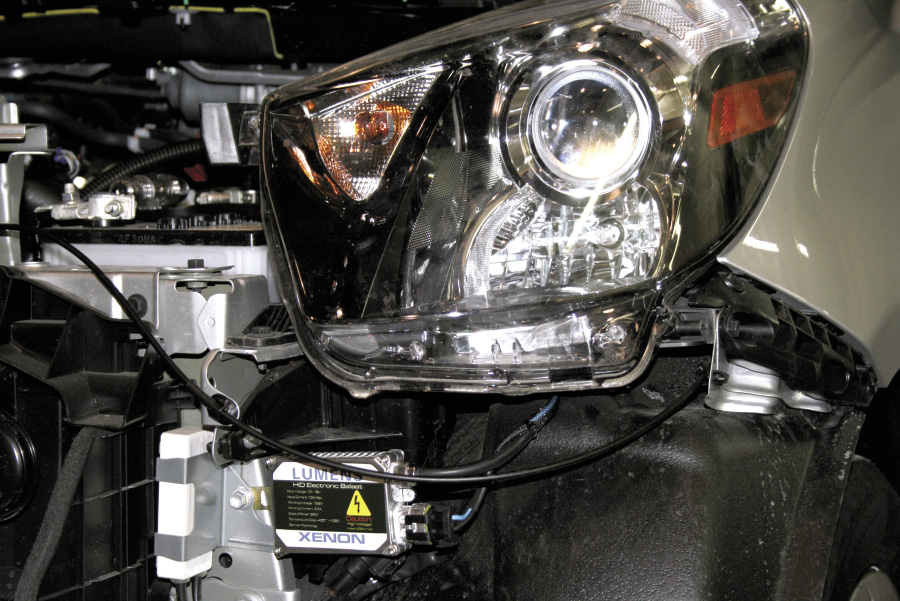

The Lumens ballasts attach to the front radiator support.

Project Scion: 2012 Scion iQ Entertainment Upgrades

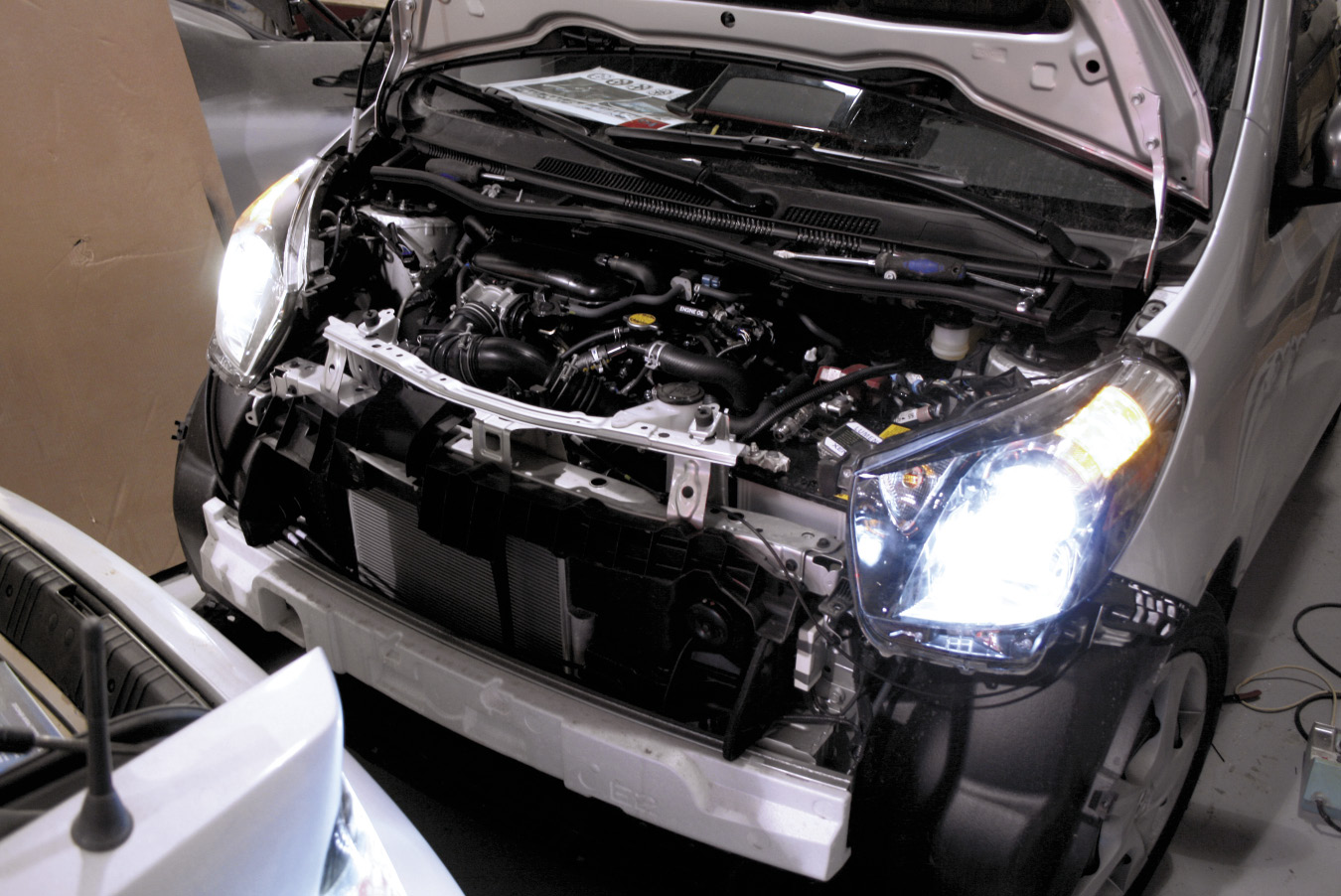

Nice white light ready to light up the road in style.
