Buyers Guide: DeatschWerks Has Your Fuel System Covered

Buyers Guide: DeatschWerks Has Your Fuel System Covered

2021 PASMAG167 DeatschWerks 8th Gen Honda Module 9 401 7041

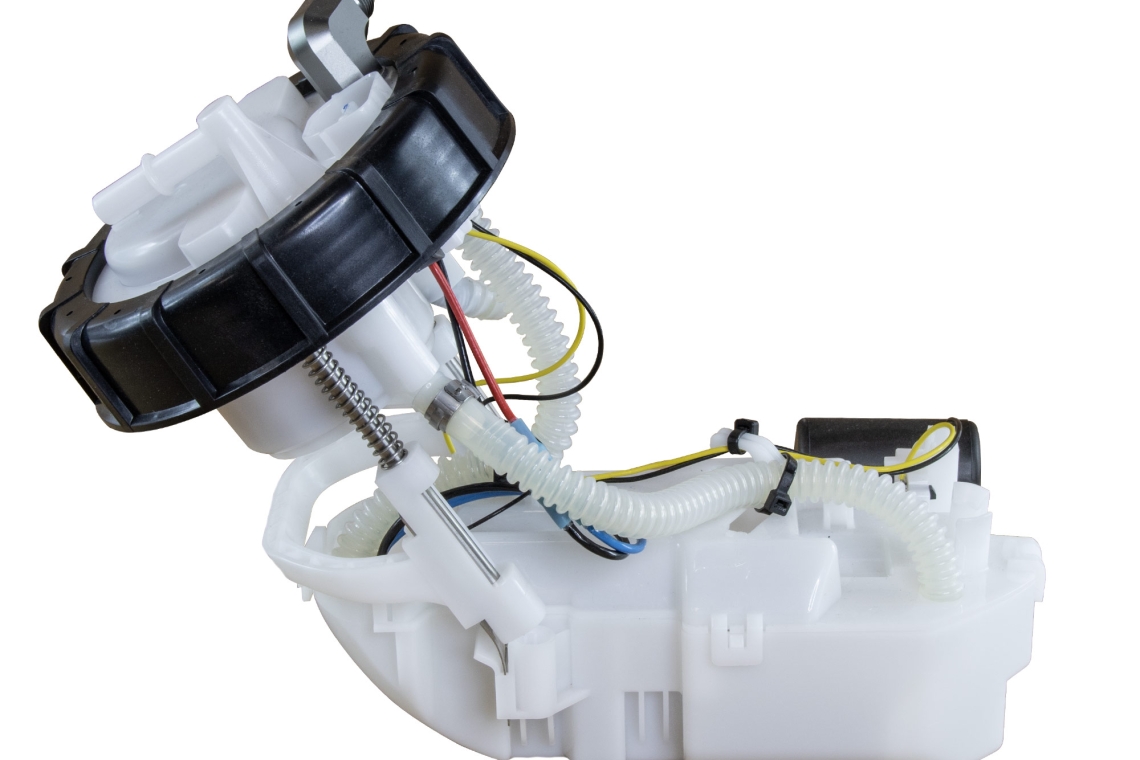

DW400 Pump Module for 7th, 8th, or 9th Gen Honda Civic and Acura RSX/ILX

  • Supports 900 gas and 700 e85
  • 250% flow increase over OE Module
  • Designed for-6AN feed line and utilization of OE feed for return
  • Retains all OE module functionality including:
  • Plug-n-play harness connector
  • Fuel level sender
  • Fuel surge bucket
  • Compatible with pump gas, race fuel, and e85
  • Optional plumbing kits with regulator and filtration available

2021 PASMAG167 DeatschWerks Honda K Series Fuel Rails 7 402

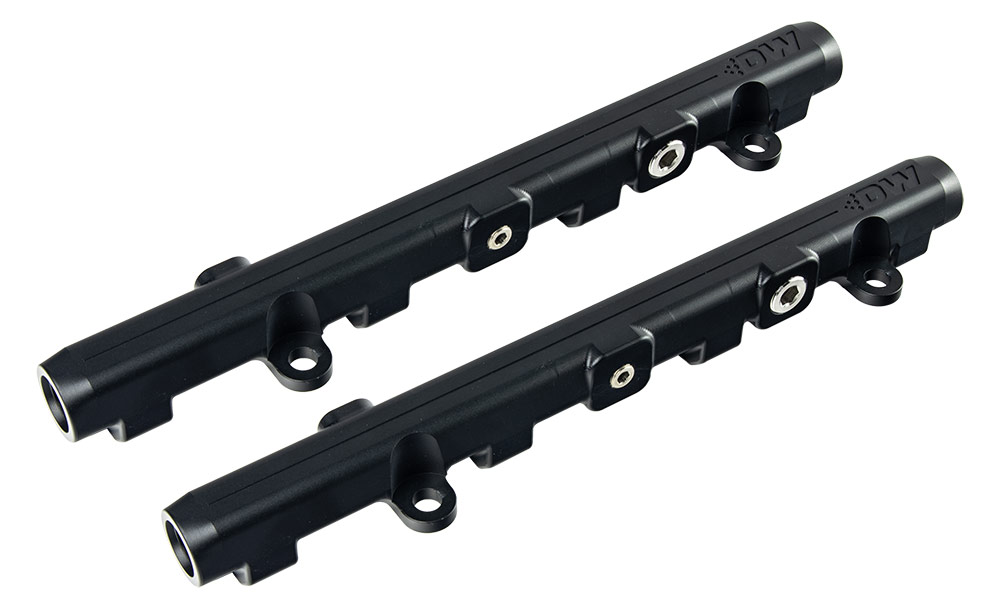

Honda K Series Fuel Rails

  • CNC’d from billet T6061 with integrated brackets for increased stiffness and precision fitment
  • -8 ORB inlets and outlets utilizing bore diameters that exceed AN spec by 80%
  • 1/8” NPT and 3/8” NPT ports for nitrous, pressure gauges, & fuel pulsation dampers
  • Schrader pressure test valve included
  • Optional fuel pulsation damper sold separately

2021 PASMAG167 DeatschWerks Surge Tank Components

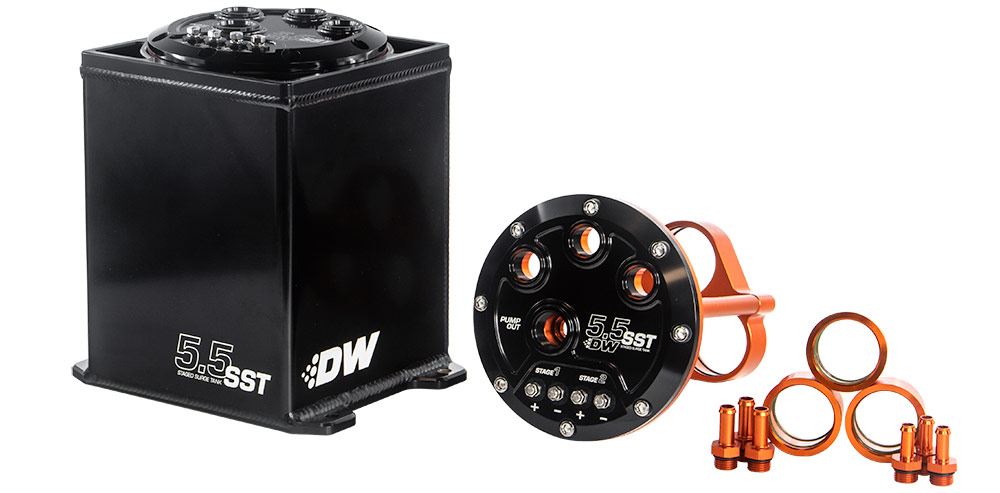

5.5L Staged Surge Tank

  • 5.5L capacity for support up to 2000hp
  • 3-into-1 Merged -10AN outlet for optimized flow and simplified plumbing
  • Fits all standard-sized 39mm pumps AND 46mm DW400
  • Wiring flexibility for single staging or dual staging of pump triggers
  • Submerged pump design for quiet operation, cool fuel, and long pump life
  • Anodized for use with all fuels including e85 and methanol
  • Rated at 10 amps

2021 PASMAG167 DeatschWerks DWR1000

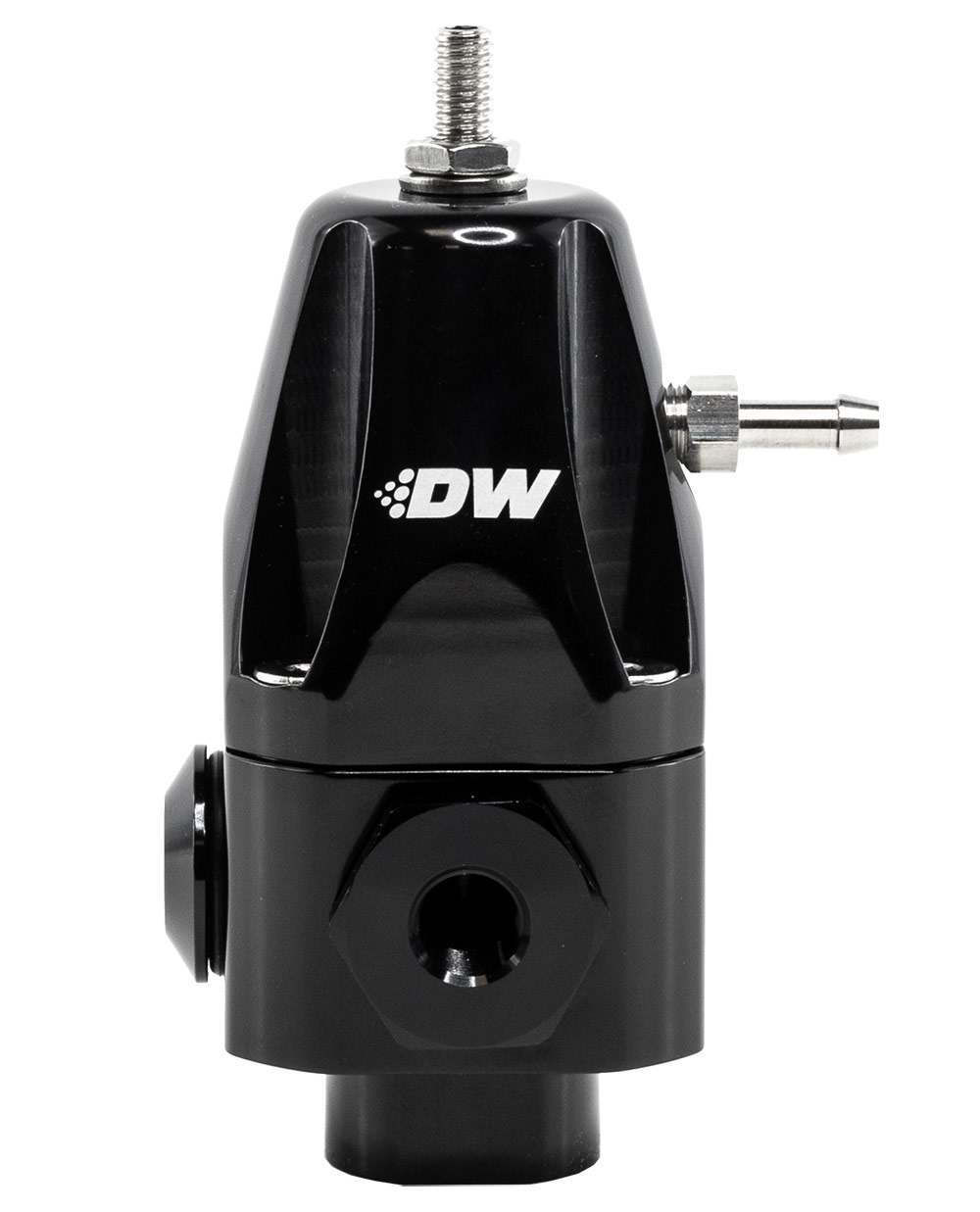

DWR1000 Fuel Pressure Regulator

  • Precision performance and versatility of up to 1,000hp
  • 2 psi per turn precision ball bearing adjustment
  • Four -8AN ORB inlets, -6AN ORB outlet
  • Vacuum Reference 1/8” NPT
  • Pressure range from 30 to 100psi
  • Flow rate of 500LPH
  • Compatible with all fuels including methanol and ethanol
  • Multi-directional bracket for installation flexibility

2021 PASMAG167 DeatschWerks FPHWK 10 HD w relay

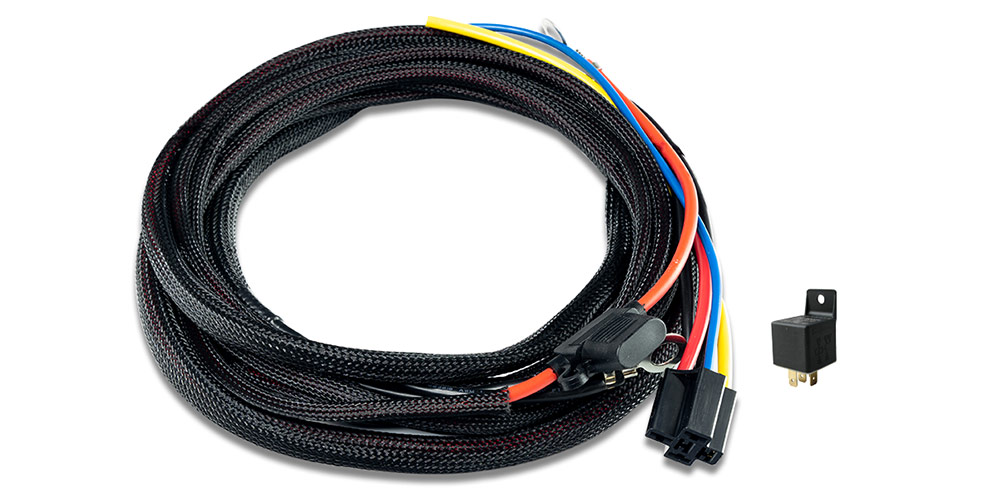

Heavy Duty Fuel Pump Hardwire Kit

  • 40-amp Bosch Automotive Relay
  • 30-amp ATO Blade Fuse
  • 15’ 10awg SLX Automotive Wire
  • 6’ 10awg SLX Automotive Wire
  • Nylon Expanding Loom Covering
  • Easily, safely, and reliably wire your pump directly to the battery

2021 PASMAG167 DeatschWerks 17U 08 1000

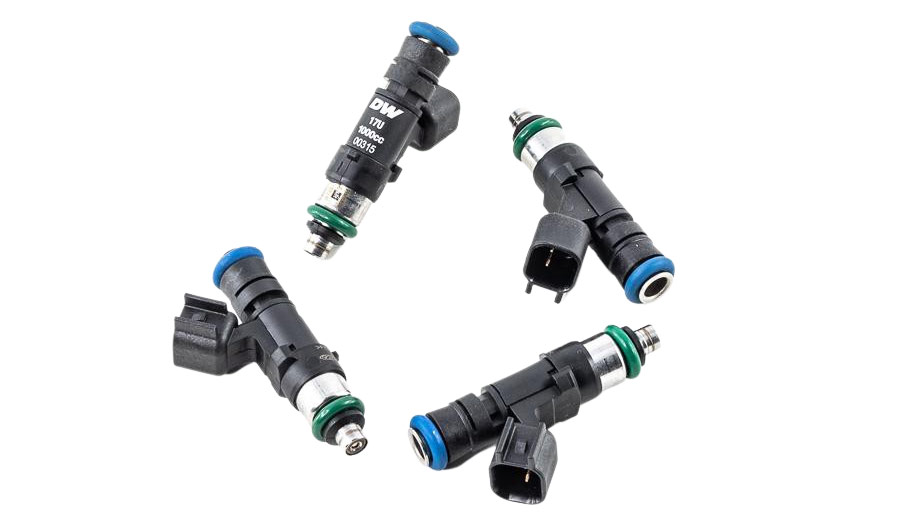

Fuel Injectors

  • Most comprehensive and best-supported injector line in the industry
  • DW collects 450 data points on each injector part number
  • Available in flow rates of 450, 550, 650, 750, 1000, 1200, and 1500cc/min
  • Compatible with all fuel types, including e85
  • Flow matched and balanced within 2%
  • Pressure rated at 43.5 psi

2021 PASMAG167 DeatschWerks 8 03 070 010K

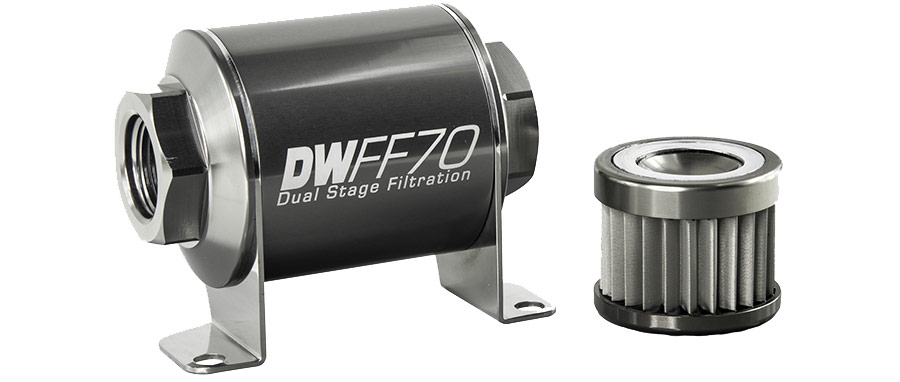

Fuel Filter

  • Dual-Stage Magneto-Mechanical Filtration
    • 35mm Neodymium magnet
    • serviceable pleated 304-series stainless steel elements
  • 39 stainless steel pleats for maximum filtration surface area
  • 3/8" or 5/16" hose barb, -6AN, -8AN, or -10AN ORB available
  • 5, 10, 40, and 100 micron pore sizes available
  • 70mm, 110mm, or 160mm lengths available
  • Mounting brackets integrated into housing body

For more information, visit https://deatschwerks.com.
