D2 Racing Air Suspension Vera EVO Bluetooth Kit

D2 Racing Air Suspension Vera EVO Bluetooth Kit

The D2 Air Suspension Vera EVO Blutetooth Kit is designed as an application specific bolt-on kit that includes all the essential items needed install air ride. Air Suspension is ideal for the car enthusiasts looking for the best of both worlds the ability to have a slammed car look and raise it back to stock height when needed for normal everyday driving. The shocks provided with the kit have 36 levels of damping adjustment to allow you to further fine tune the ride for what you're looking for in your driving experience.

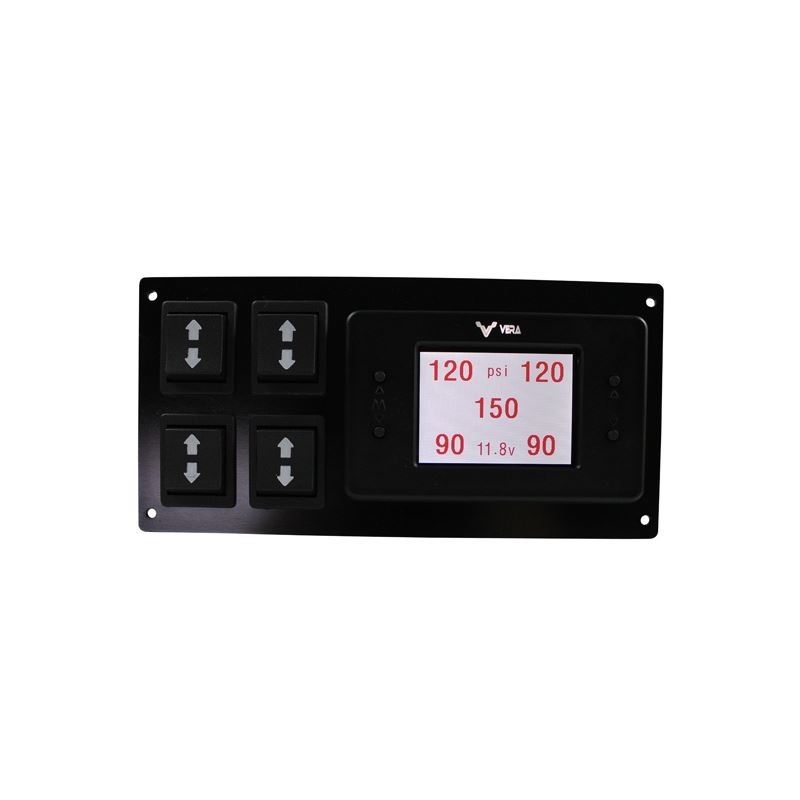

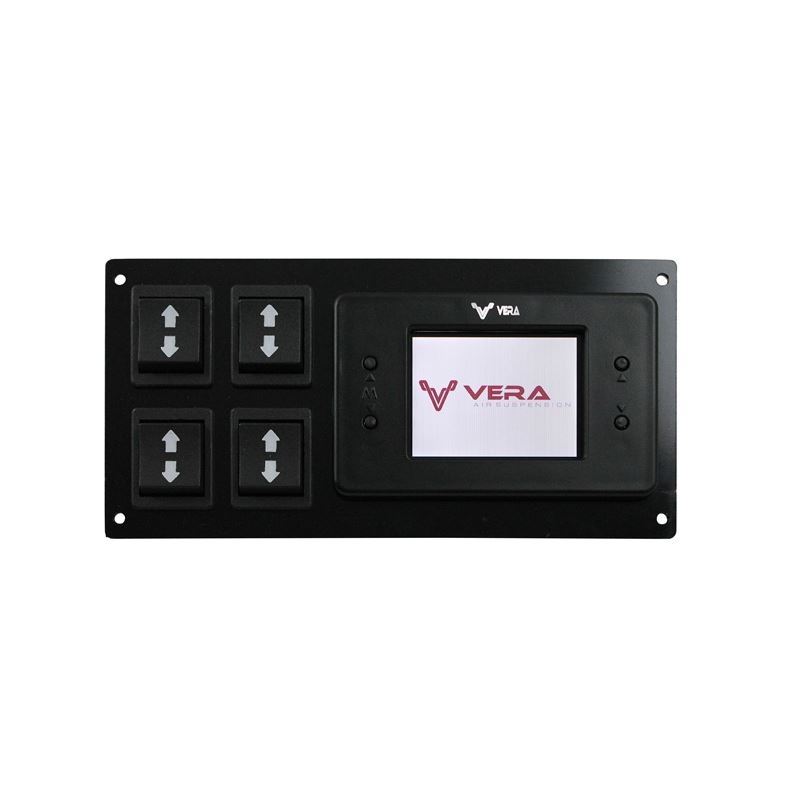

The Evo Bluetooth management system allows for electronic management of all four corners offering both in vehicle operation, through included RF remote or our Bluetooth app available for both iPhone and Android. Also includes five sensor digital gauge allowing for easy access to vital air pressure information (four individual corners and tank).with LCD display, user defined font and background colors, high/low pressure alerts and voltmeter.

D2 Racing 1999 2002 Nissan Skyline GTR R34 Air Struts Vera EVO Bluetooth Management pasmag 03

Key Features:

  • D2 Air Suspension systems enables users to change air pressure and can also adjust the maximum and minimum ride height freely to match up to a body kit to get the desired ride height.
  • This system is designed for easy bolt-on installation.
  • D2 Air Systems have 36 levels of adjustable dampening as well as ride height adjustable, including upper mount in the fronts and rears.
  • The top mounts that we have on air suspension will be based on our standard setting.
  • Tire pressure gauges can be connected to the air tank to can also be used to fill your tires; the air pressure in the tank is sufficient for the tire pressure gauge.
  • A pneumatic tool can be connected to the air tank as well to clean the exterior of your vehicle, the air pressure in the air tank is sufficient for the pneumatic tool.
  • The adjustment range of ride height is between 0 and 120/200mm. (based on different applications)
  • The speed of lowering and raising vehicle ride height is 4-7 seconds.

D2 Racing 1999 2002 Nissan Skyline GTR R34 Air Struts Vera EVO Bluetooth Management pasmag 04

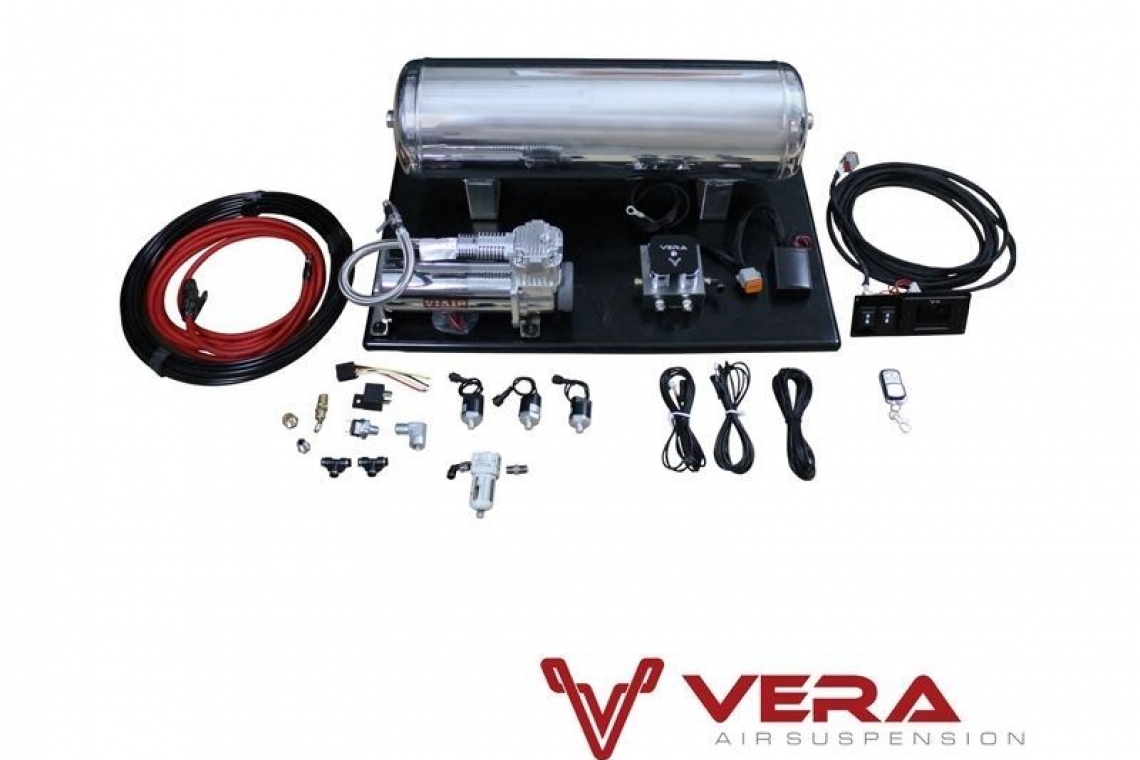

The Kit Includes the Following:

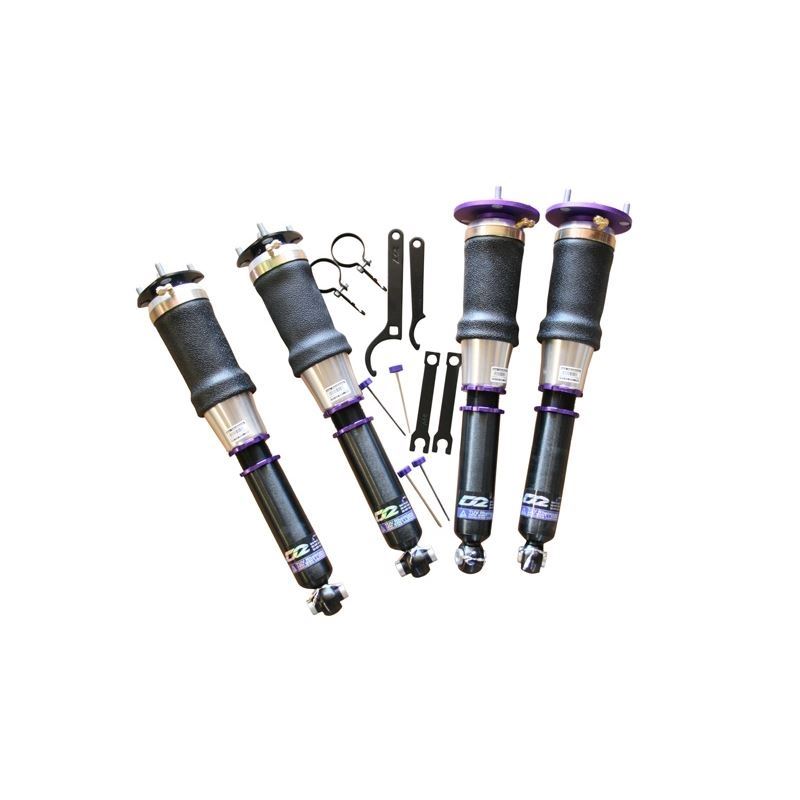

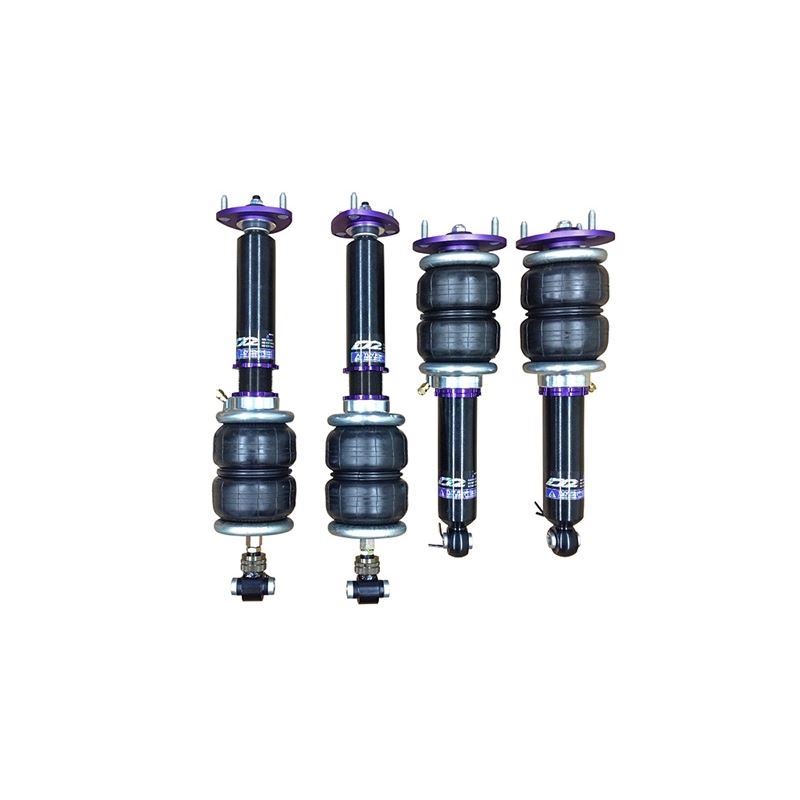

  • D2 Racing 36-way dampening adjustable air struts (set of four)
  • Quad electronic switches with five pressure gauge
  • 4 Solenoid valve block
  • 3 pressure sensors
  • Four button RF remote (front up, front down, rear up, rear down) with 150 ft range

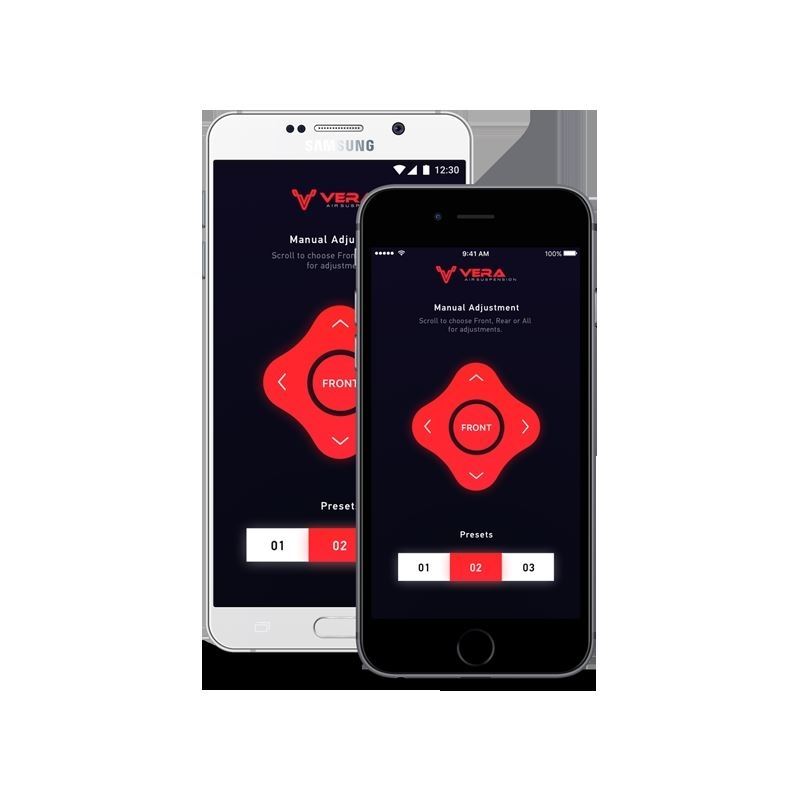

  • Six function Bluetooth smartphone app
  • Polished 4 gallon aluminum tank with baseboard
  • Chrome VIAIR 444C
  • SMC water trap
  • 60 and prime; DOT and frac14; air line
  • 150-175 PSI pressure switch
  • All necessary fittings, power cables and plugs

Application:

  • 1999-2002 Nissan Skyline GT-R R34

MSRP

  • $2,800.00

For more information, visit www.d2racingcoilovers.com.

D2 Racing 1999 2002 Nissan Skyline GTR R34 Air Struts Vera EVO Bluetooth Management pasmag 02

D2 Racing 1999 2002 Nissan Skyline GTR R34 Air Struts Vera EVO Bluetooth Management pasmag 05

D2 Racing 1999 2002 Nissan Skyline GTR R34 Air Struts Vera EVO Bluetooth Management pasmag 06
