THE HYBRID YOU ACTUALLY WANT TO HEAR ABOUT

The word “hybrid” when it comes to cars is almost always associated with Toyota Priuses, Honda Insights, and the more environmentally- and economically-focused future it seems the automotive industry is headed towards. While the term is presently tied to boring automotive appliances, it’s key to not forget the original definition:

hy·brid
/'hī,brid/
adjective
of mixed character; composed of mixed parts.

16 John Nguyen 1072 Toyota Celica PASMAG

Combining parts with unique characteristics to make something truly in its own lane is always exciting, and we just happen to know the perfect example. Spitting in the face of modern hybrids is John Nguyen’s 1972 Toyota Celica. From the outside, this may only look like a classic Celica with some modern touches and a supercharger sticking out of the hood, but under the skin, this is the enthusiast’s version of a hybrid.

Nguyen is the owner and operator of a shop in North York (a part of the Greater Toronto Area) in Ontario, Canada, that handles all kinds of projects. He personally owns 10 cars, all Japanese, that he’s put his own spin on; an AE86 that he’s swapped an F22C engine into, a fire-spitting Supra in the four-digit power numbers, and a Civic hatch that’s been converted to all-wheel drive and runs on methanol are just a few examples. The ‘72 Celica is the most recent addition to the fleet and it didn’t last long before Nguyen twisted it to be possibly the most insane out of his collection, build-wise.

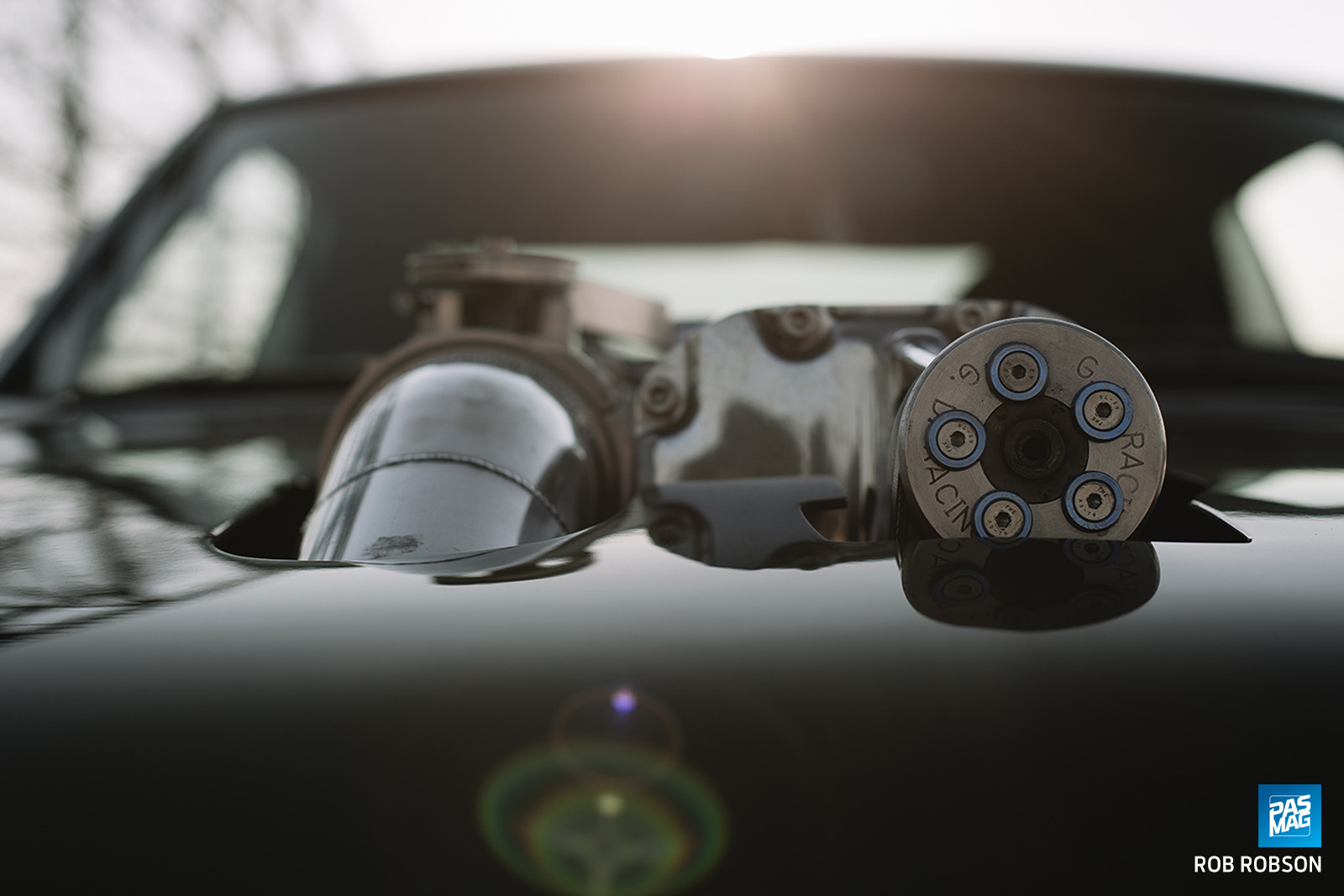

02 John Nguyen 1072 Toyota Celica PASMAG

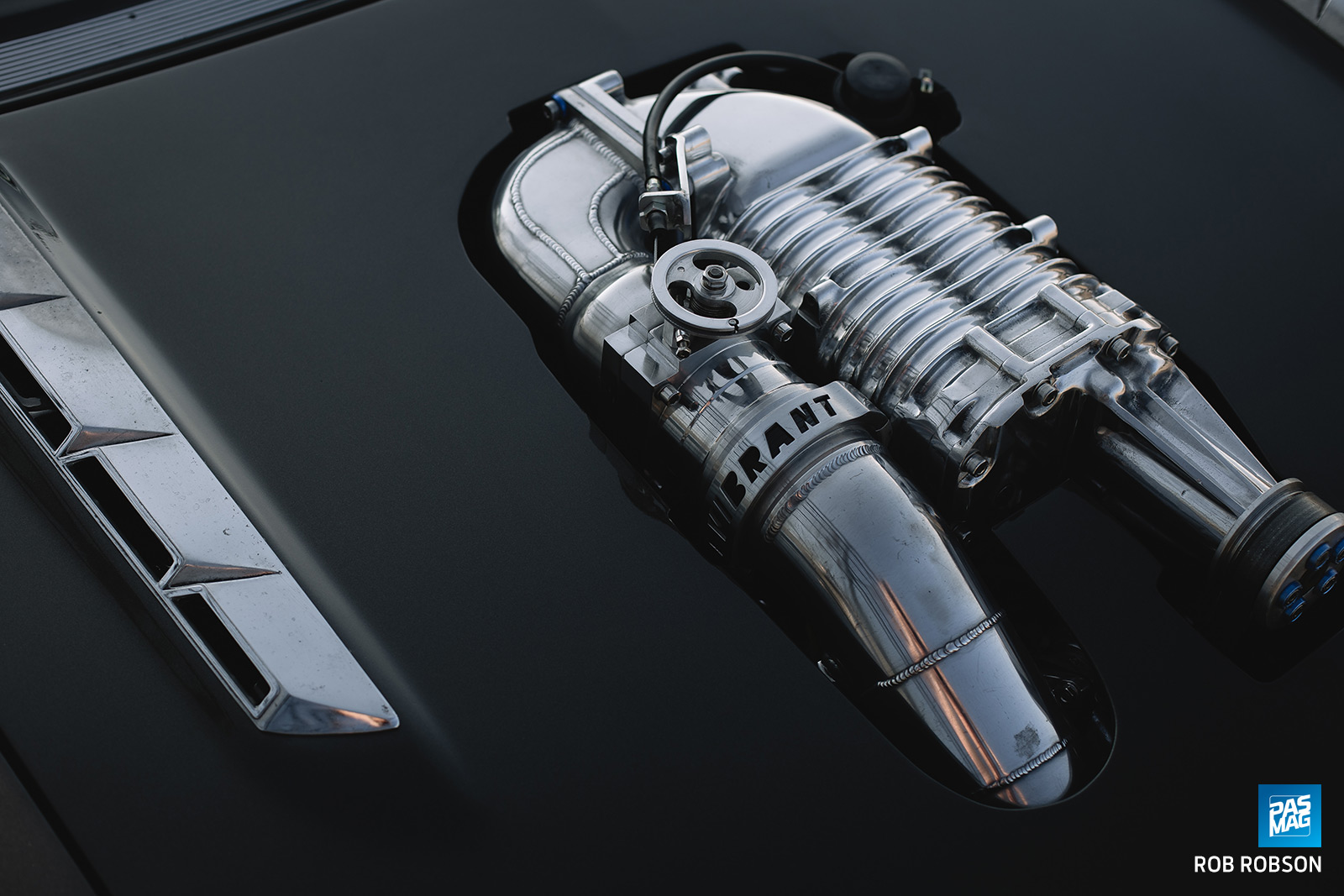

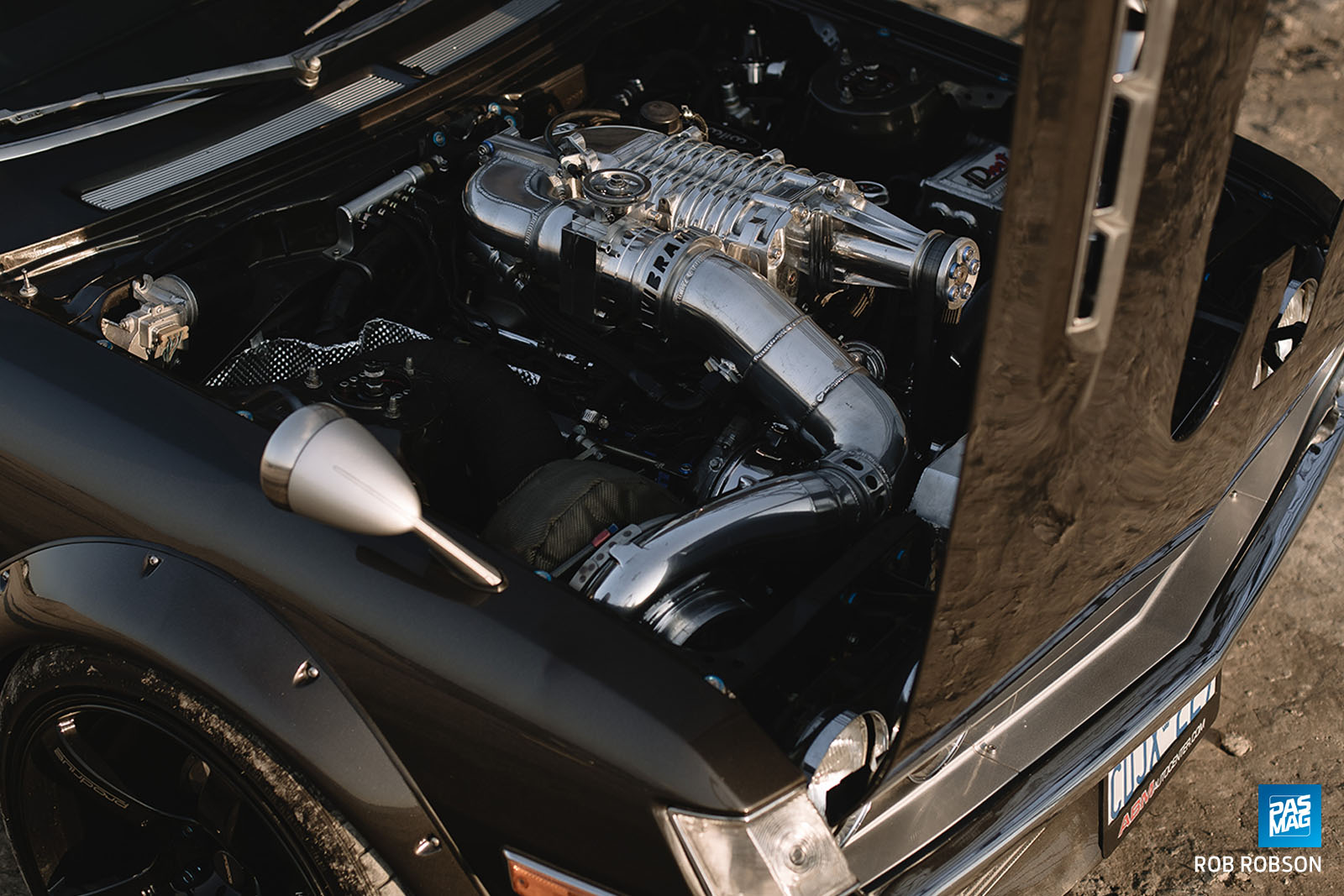

The supercharger sticking out of the hood of the car is actually a Ford SVT unit meant for a Mustang, which is whirring away atop a Toyota 2UZ engine out of a Lexus GX SUV. While that’s enough to give your head a shake, the custom piping under the hood continues to a secondary source of forced induction: a Garrett GTX4508R turbo. The 816 wheel-horsepower and 877 lb-ft of torque resulting of that hybrid system is all handled by a Titan Stage 2 A340E automatic transmission from a MKIV Supra, and then handed down to the rear wheels via a Ford Racing LSD. Usually the term “cobbled together” is negative, but this thing was cobbled with care to give way to something truly different and truly special.

03 John Nguyen 1072 Toyota Celica PASMAG

It’s funny to think that this build was the result of a simple conversation between Nguyen and his wife, Phuong, one day. She expressed how much she liked the first generation Celica’s looks and suggested that they should seek one out as a project. After a few searches around some classified listings online, the power couple had zeroed-in on one not too far from them and arranged to go check it out. Unfortunately, it wasn’t to be, as the car had been sitting outside for too long in Ontario’s elements. Swapping and modifying is something that Nguyen counted on, but there was no way he was going to start rebuilding a rusted-out body. Not put off by their let down though, the Nguyens expanded their search and eventually found a worthy contender over the border in Oregon. Completely stock and in need of some TLC, this Celica would be the platform for the Frankenstein to come.

14 John Nguyen 1072 Toyota Celica PASMAG

Nguyen’s shop, ABM Auto Center, tackles jobs from full-on performance builds to collision work, so the vast majority of the build was done under that roof. When a damaged Lexus GX rolled in and was declared totaled, the unharmed 4.7-liter 2UZ-FE V8 under its hood was already spoken for. Before being acquainted with the Eaton M112 supercharger that Ford’s SVT division used on the Mustang Cobra and F-150 Lightning, Nguyen supported the 2UZ with Wiseco pistons and Eagle rods, as well as juiced up the fueling system with three Walbro 450-lph pumps, a Turbosmart regulator, and 1,000-cc injectors to handle both pump fuel and methanol. A much-needed extra support due to the boost that would be added.

“A positive displacement supercharger allows the engine to act as if it has a larger displacement,” Nguyen explains of his system. “The 4.7-liter with eight psi through the supercharger has the airflow and power characteristics of a 5.7-liter engine, so the turbine on the turbo must be sized for that increase in flow. That’s why I have a large turbo with basically instant power and no lag!”

13 John Nguyen 1072 Toyota Celica PASMAG

The additional GTX4508R is a sizeable snail - the largest T4-based turbo that Garrett offers, actually - and it was donated by Nguyen’s 1,000-plus-horse Supra that was mentioned earlier, as was the automatic transmission that’s outfitted with Titan Motorsports’ Stage 2 makeover to handle some serious power. After performing a manual swap and updating the engine bay, the Supra parts were just sitting on the shelf, so why shouldn’t the Celica make use of them? As you can imagine, the smaller bay of the ‘72 Toyota stuffed with a V8, blower, and a turbo doesn’t leave a whole lot of room left for other activities, such as cooling. Instead of running a big front-mount intercooler, Nguyen gets away with a smaller air-to-water intercooler from an old drag setup he used to run on his Civic, which is mounted pretty far forwards, almost directly behind the front license plate.

06 John Nguyen 1072 Toyota Celica PASMAG

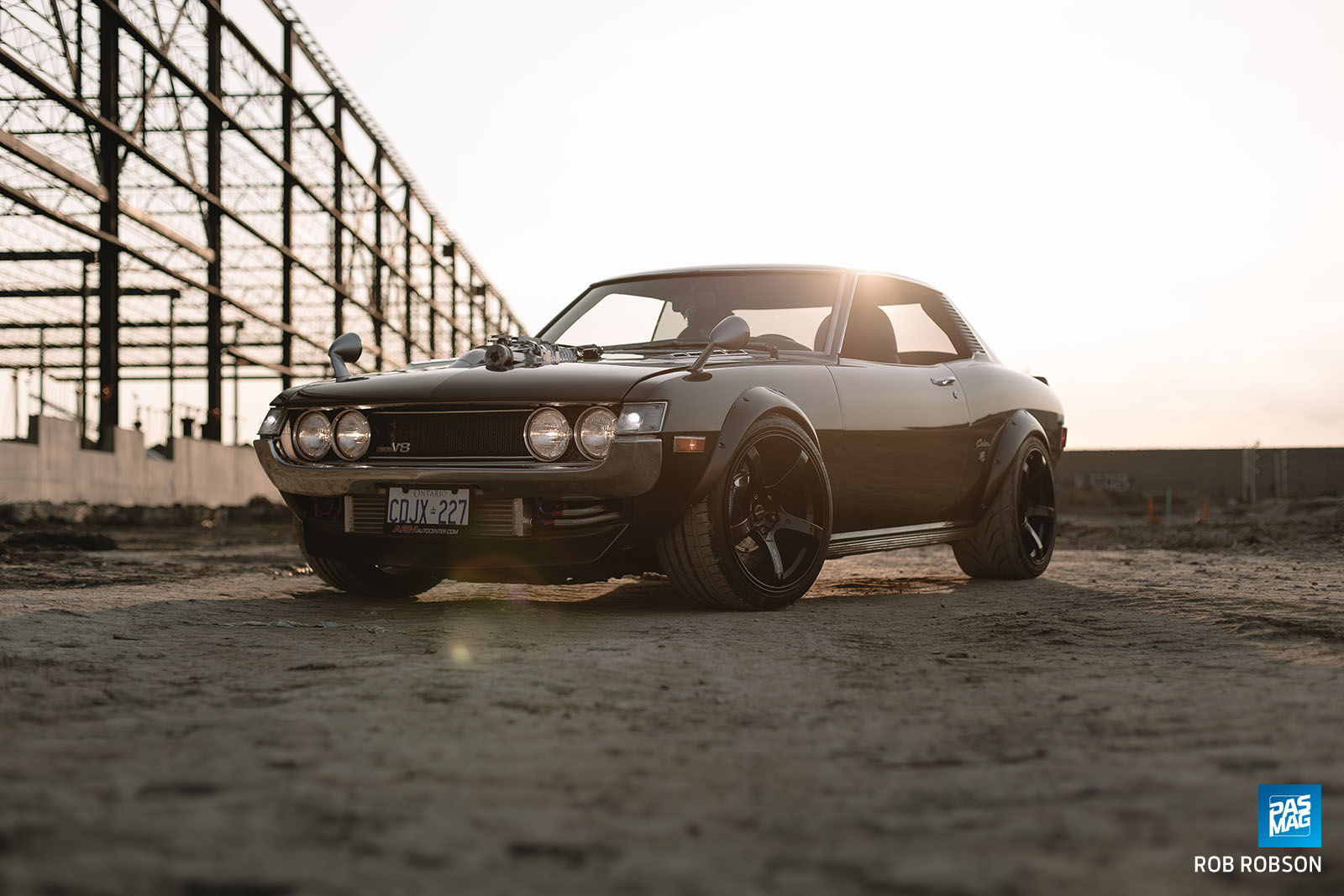

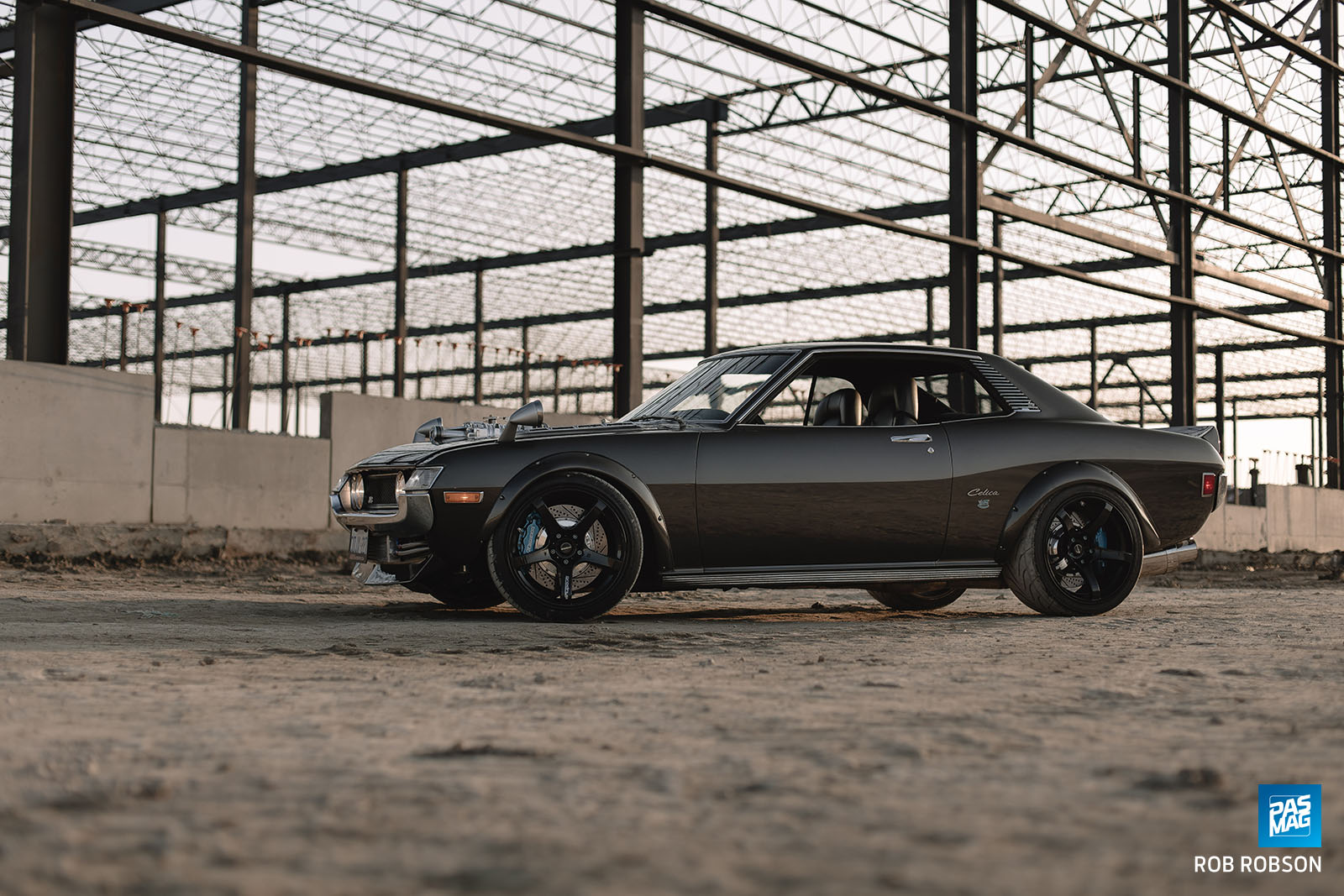

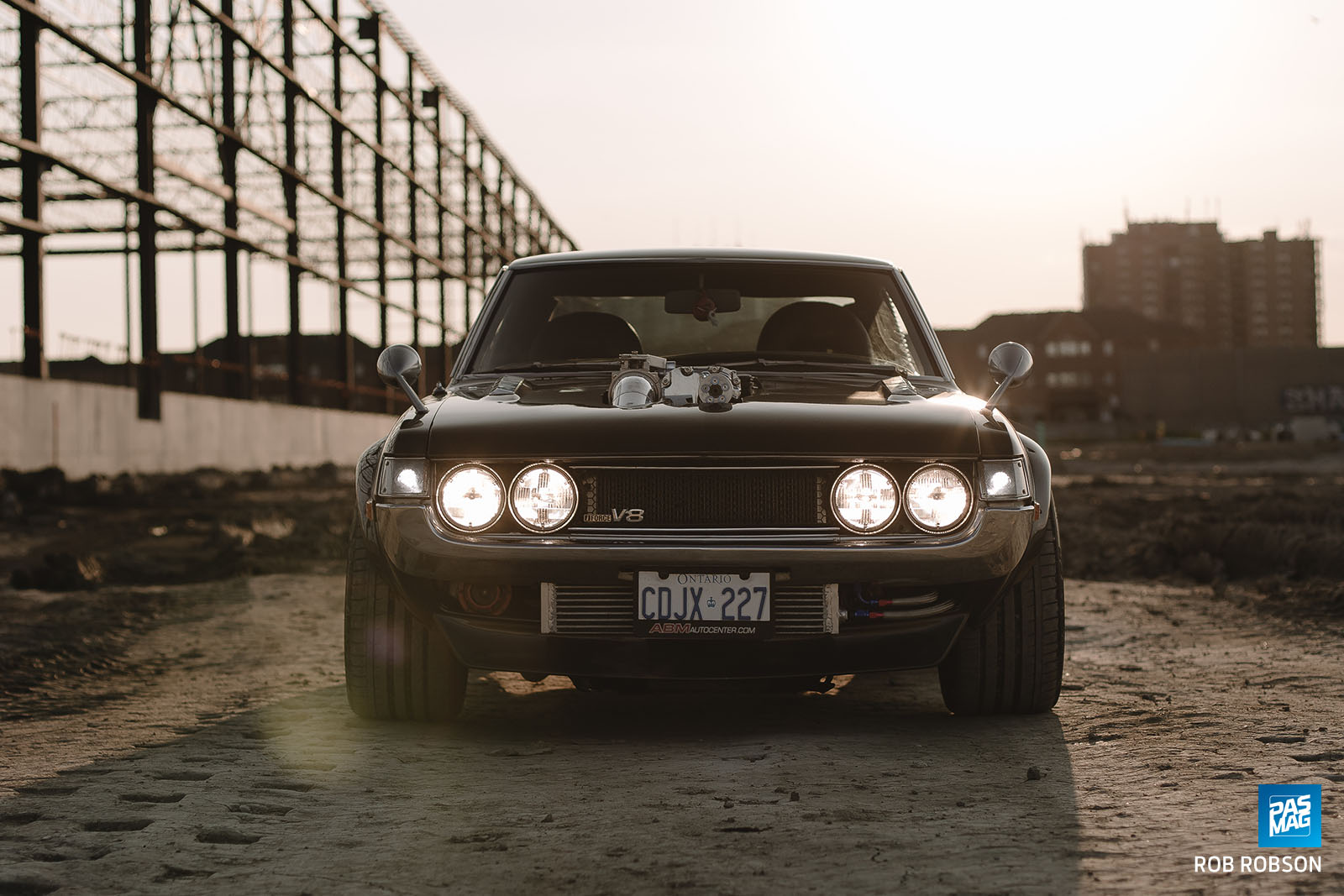

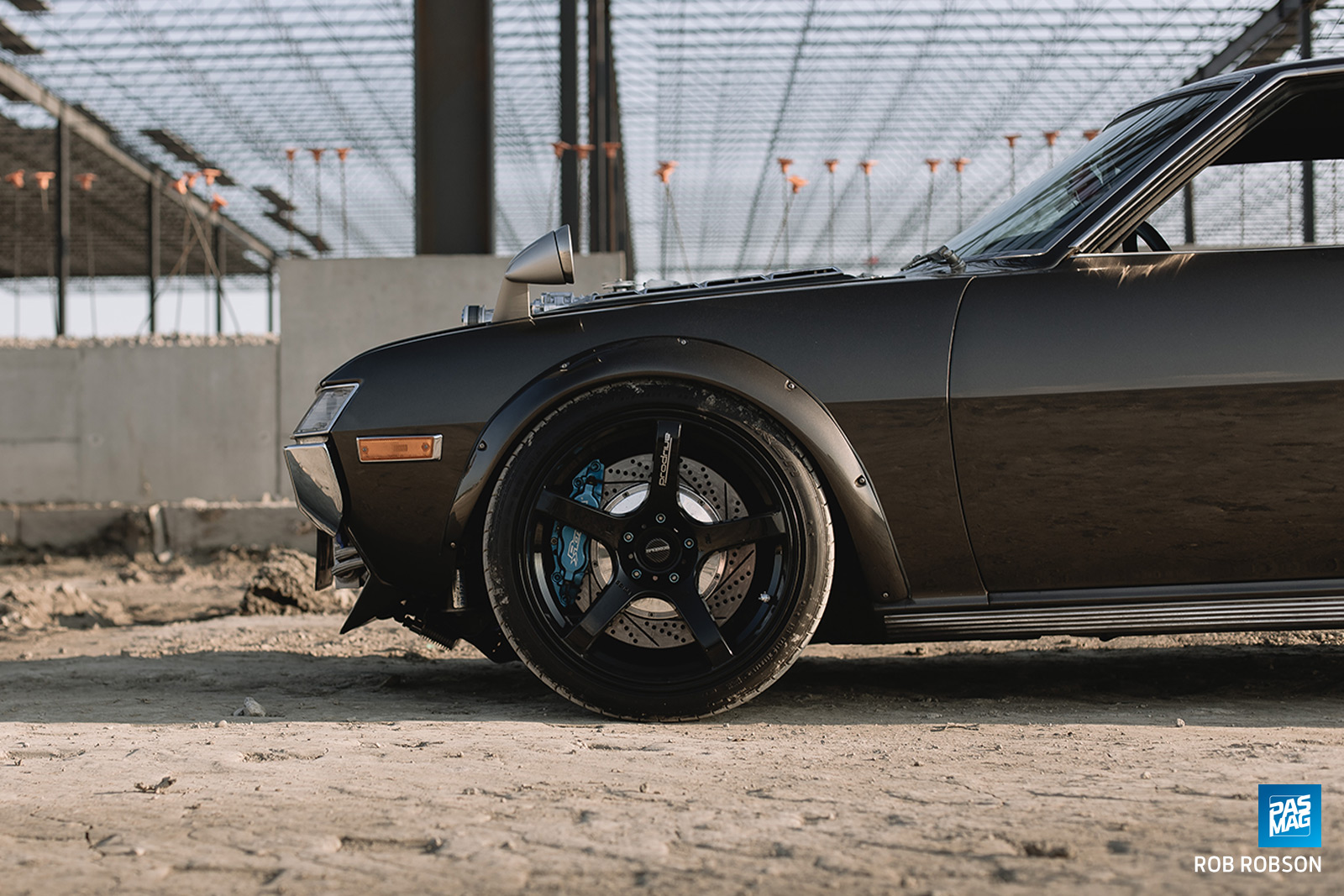

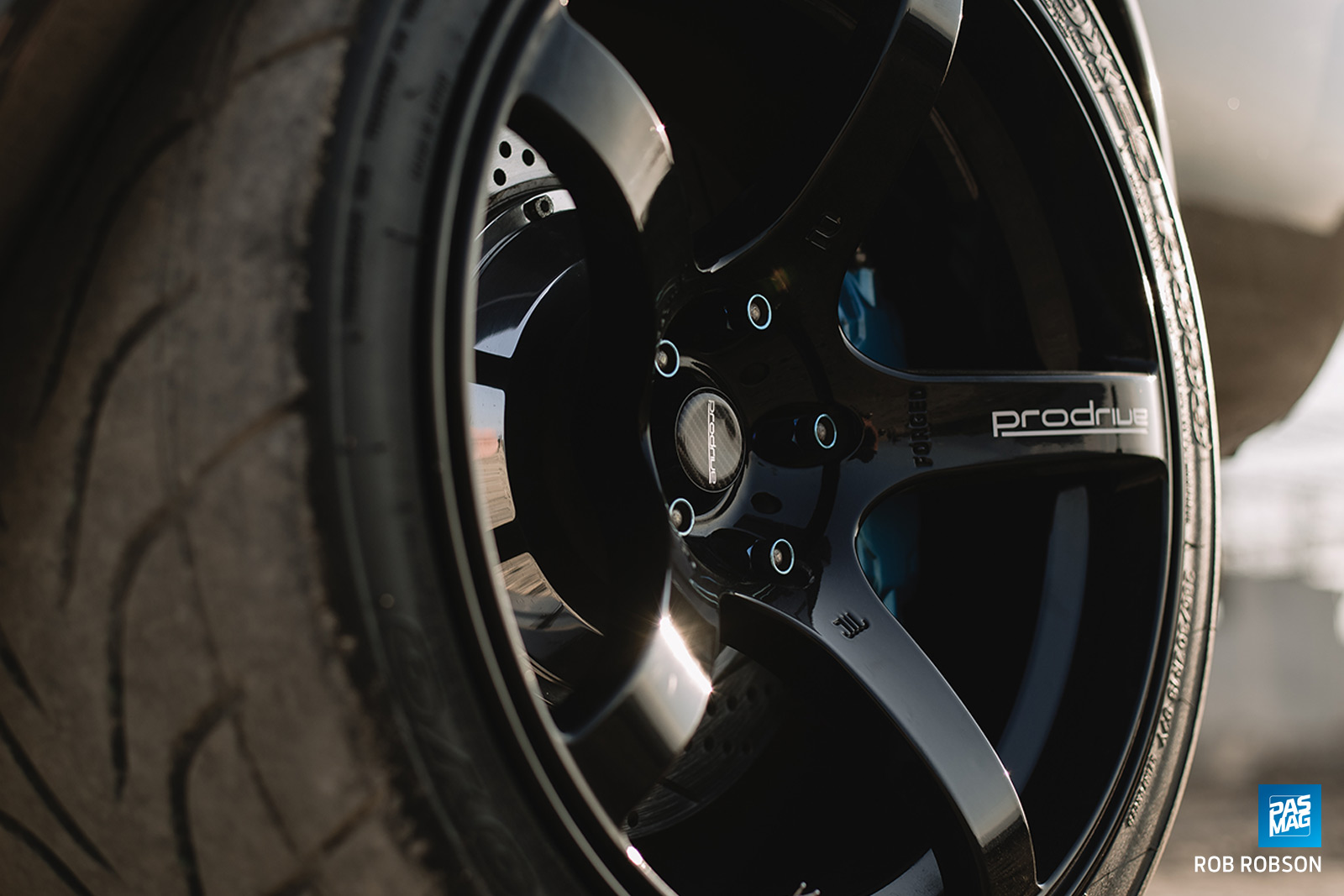

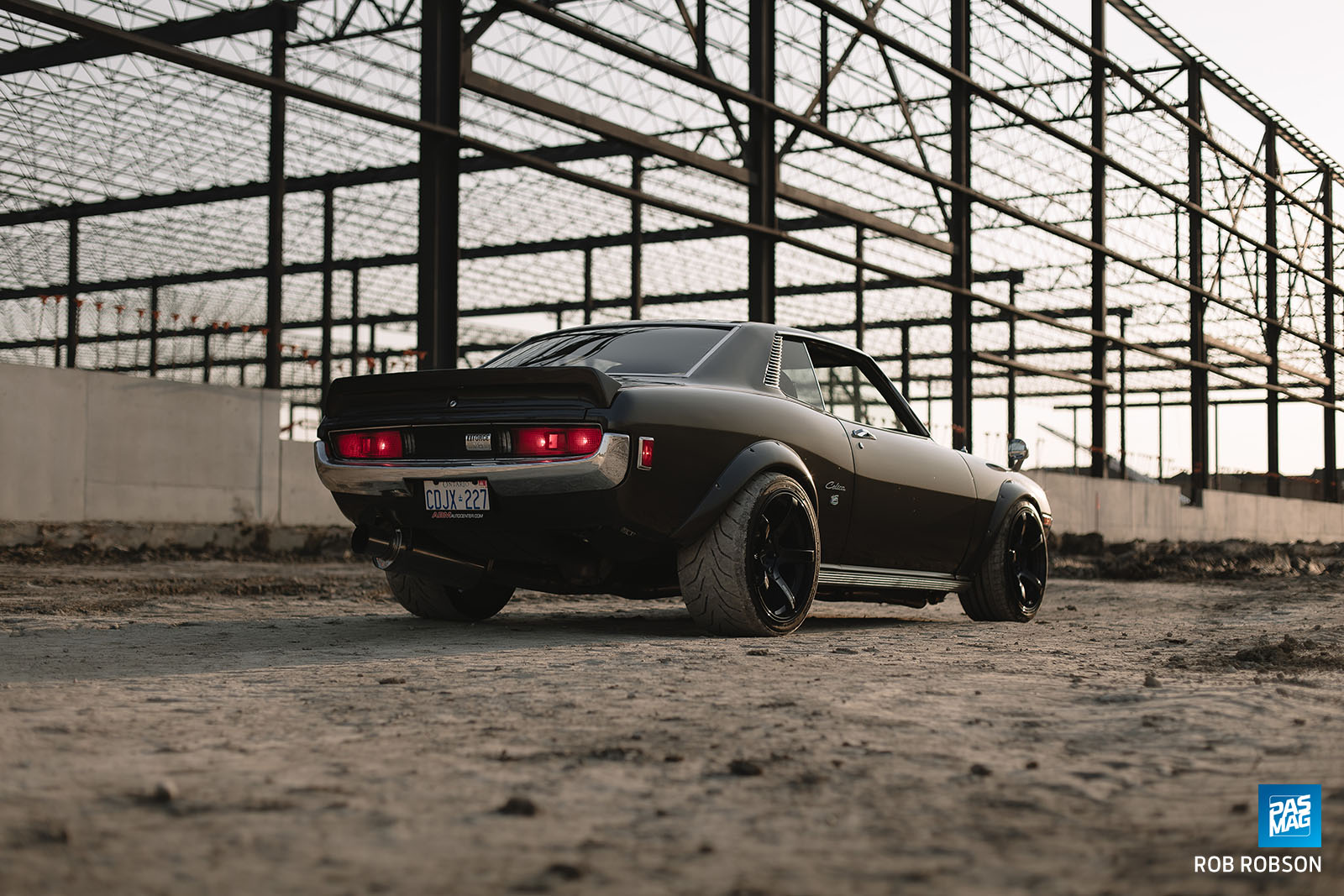

Aside from all the business under the hood though, the Celica still looks as much like a mini ‘60s Camaro as it did when it first came out, just with a few modern touches. TRD flares, chin spoiler, and a trunk wing were all sourced and applied to the stock body, which was then lowered via coilovers over some Rays Prodrive GC05F wheels and meaty Toyo R888s. Behind the five spoke wheels is a serious Rotora brake kit that’s been transplanted from a friend’s R32 GT-R after it needed an upgrade.

08 John Nguyen 1072 Toyota Celica PASMAG

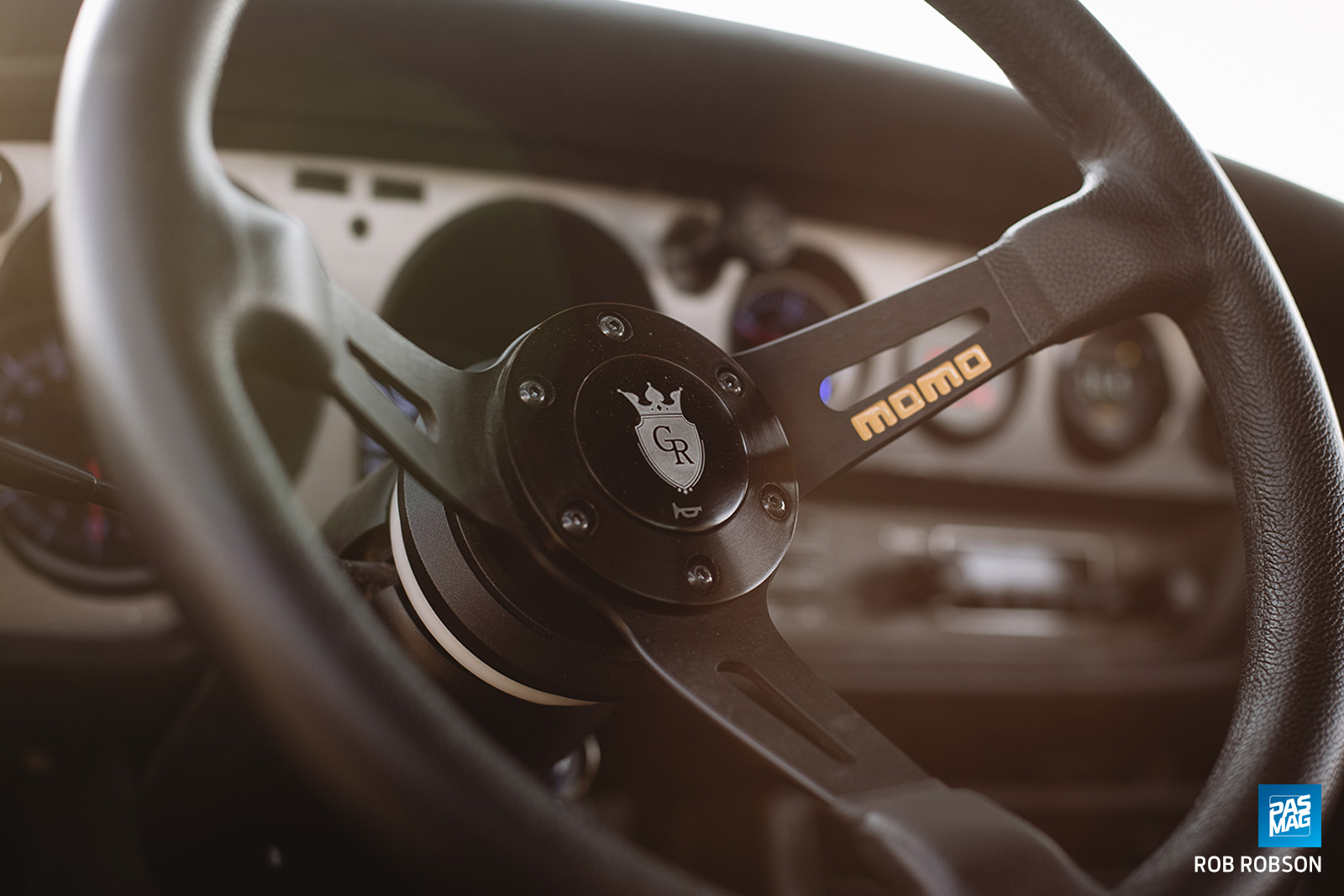

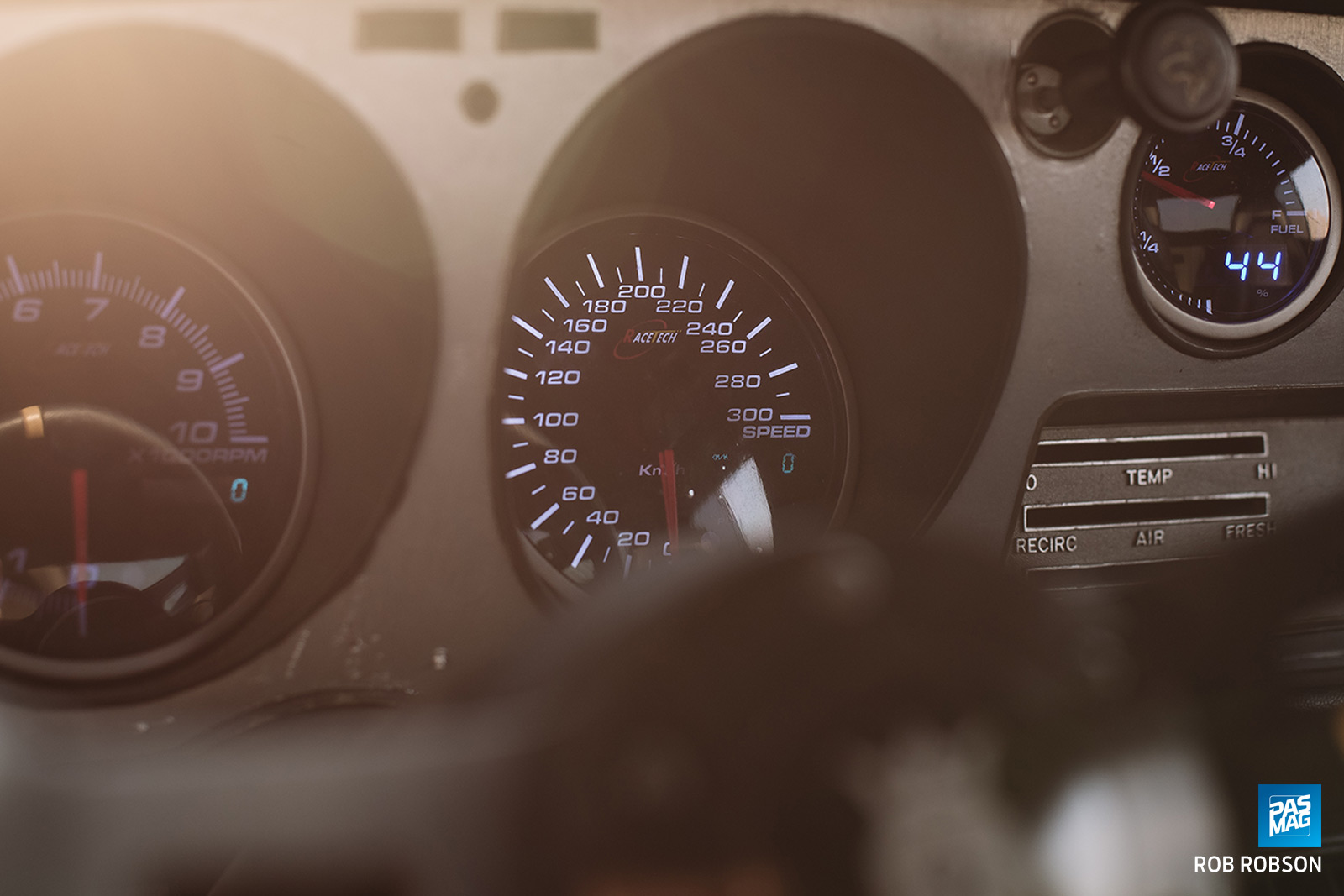

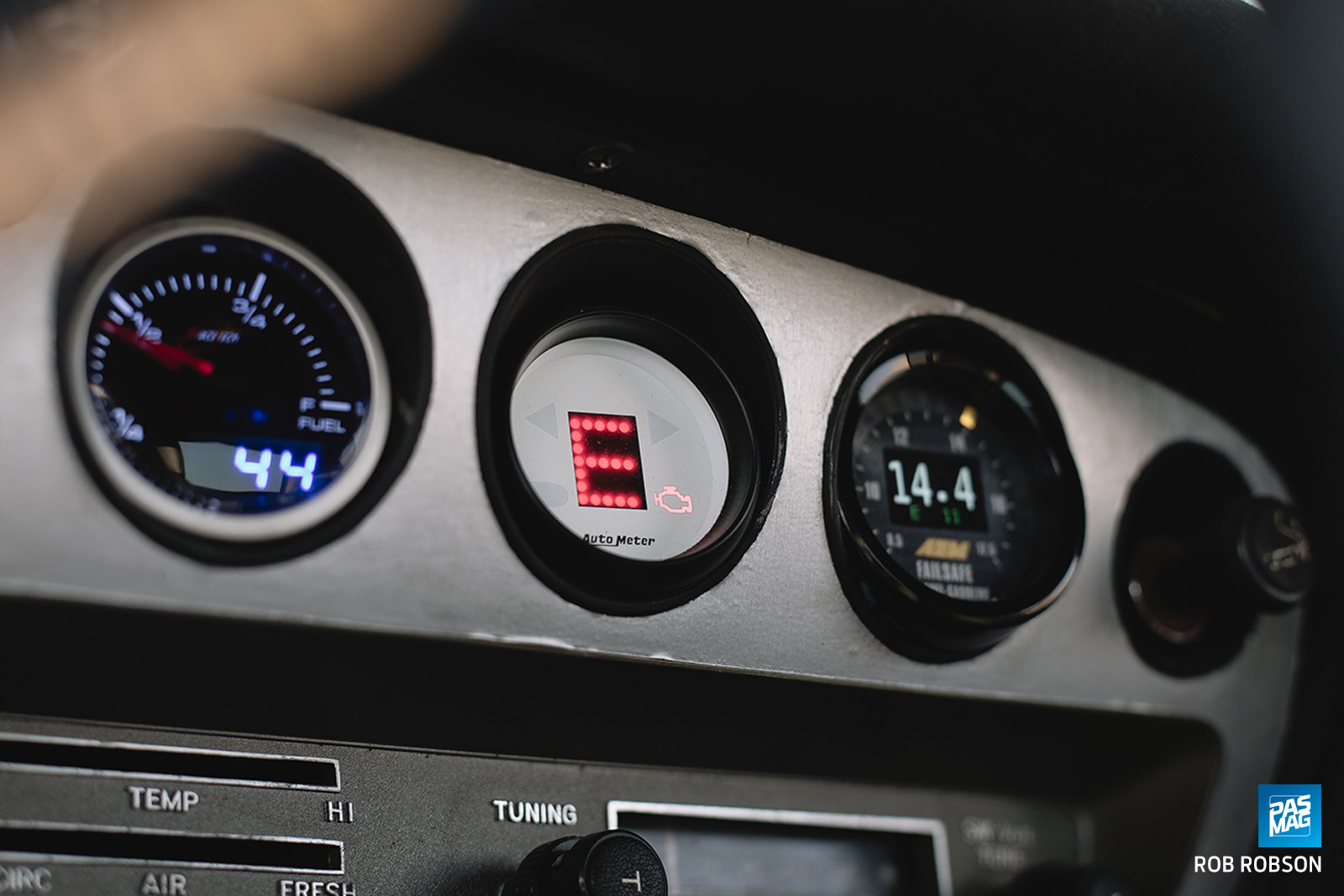

Inside the Celica are the last examples of a hand-me-down, and those are the front seat transplants from Nguyen’s Supra. From there, modern Racetech speedo and tach gauges can be viewed behind the Momo steering wheel, while a host of aftermarket gauges that keep track of gear, boost, temps, and AFR are lined down the center of the dashboard. This is a view that Nguyen is very used to, as he drives the car almost daily to the shop, and to shows here and there on the weekends. No trailers here.

17 John Nguyen 1072 Toyota Celica PASMAG

It’s not saving the environment or decreasing the amount of liquid dinosaurs burned on the road, but it is a car that’s a hybrid in more than a few ways. This is the type of creativity that should be celebrated, and as such, it has garnered more than a few awards from the shows the Celica attends. Just remember, no matter how boring the direction the automotive world may be headed in, there are people out there, like Nguyen, always doing awesome things.

John Nguyen's 1972 Toyota Celica is the cover feature of PASMAG Tuning Essentials: Ultimate Performance Guide, Volume 6. CLICK HERE TO ORDER.

Photography by Rob Robson


ESSENTIALS

Vehicle: 1972 Toyota Celica
Owner: John Nguyen
Location: North York, ON
Built By: ABM Auto Center, Dynamotorsports

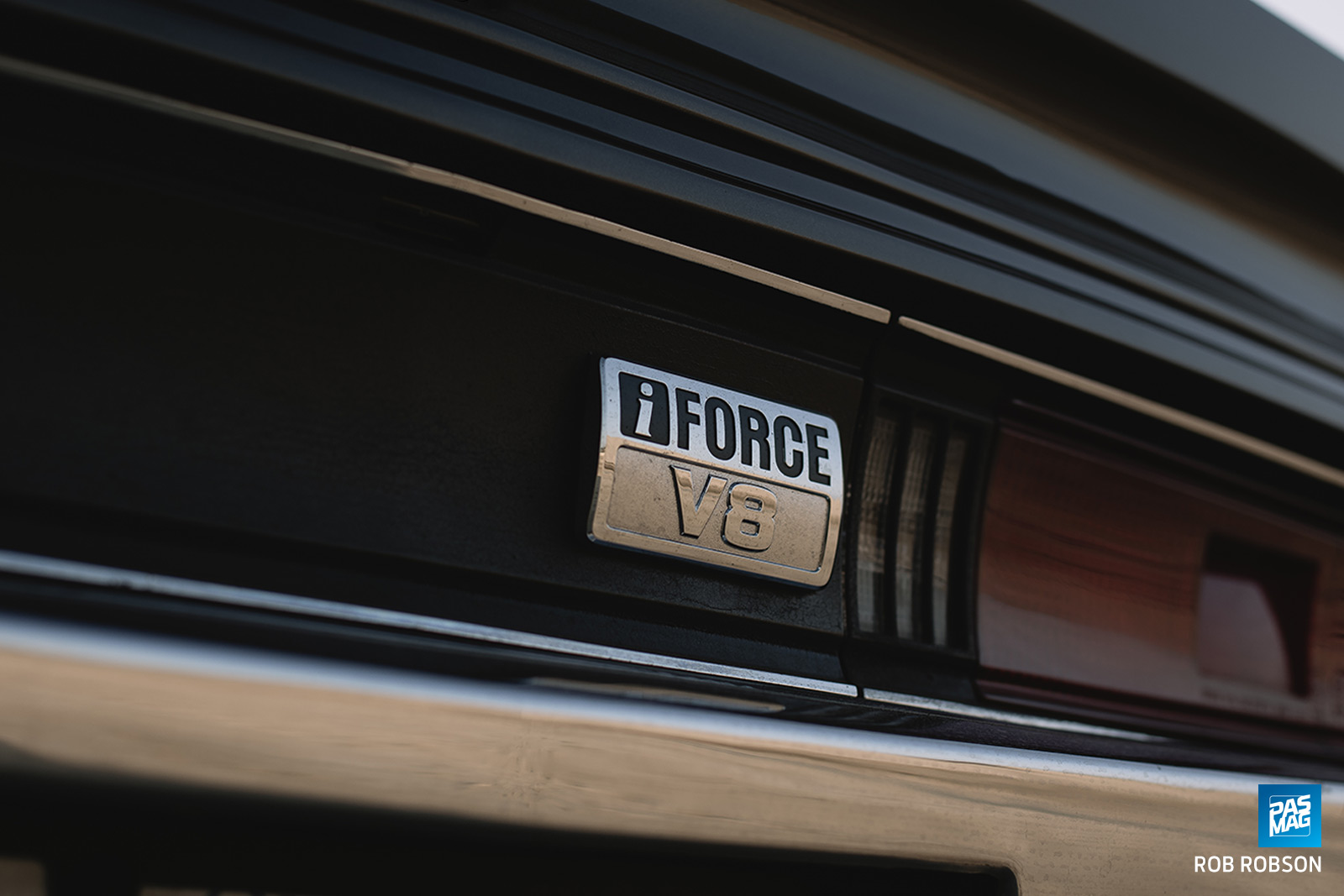

Engine: Toyota 2UZ 4.7L V8
Horsepower: 816 Whp
Torque: 877 Lb-Ft
Social: @johndimsum, @phuongae86

ENGINE

  • Toyota 2UZ V8 engine swap
  • Garrett GTX4508R turbocharger
  • Ford SVT M112 supercharger
  •  Bullet A2W (intercooler, intake manifold)
  • GReddy Type-S blow-off valve
  • Tial MVR wastegate
  • Turbosmart FPR1200 fuel pressure regulator
  • Walbro 450 LPH fuel pumps (3)
  • Injector Dynamics 1,000cc fuel injectors
  • Eagle rods
  • Wiseco pistons
  • AEM V2 standalone ECU
  • Dynamotorsports (custom tune, intercooler piping, throttle body)
  • Supertech valvetrain
  • ARP head studs

EXHAUST

  • Dynamotorsports custom (exhaust system, turbo manifolds, down-pipe)
  • Varex 3.5-inch round muffler

DRIVETRAIN

  • Titan Stage 2 A340E transmission
  • Ford Racing LSD

WHEELS/TIRES/BRAKES

  • Rays Prodrive GC05F wheels - 18x9.5 +35 (f), 18x10.5 +22 (r)
  • Toyo R888 tires - 245/35 R18 (f), 285/35 R18 (r)
  • Rotora Nissan R32 GT-R (brake calipers - 6-piston (f), 4-piston (r), braided lines, 355mm 2-piece slotted/drilled brake rotors)

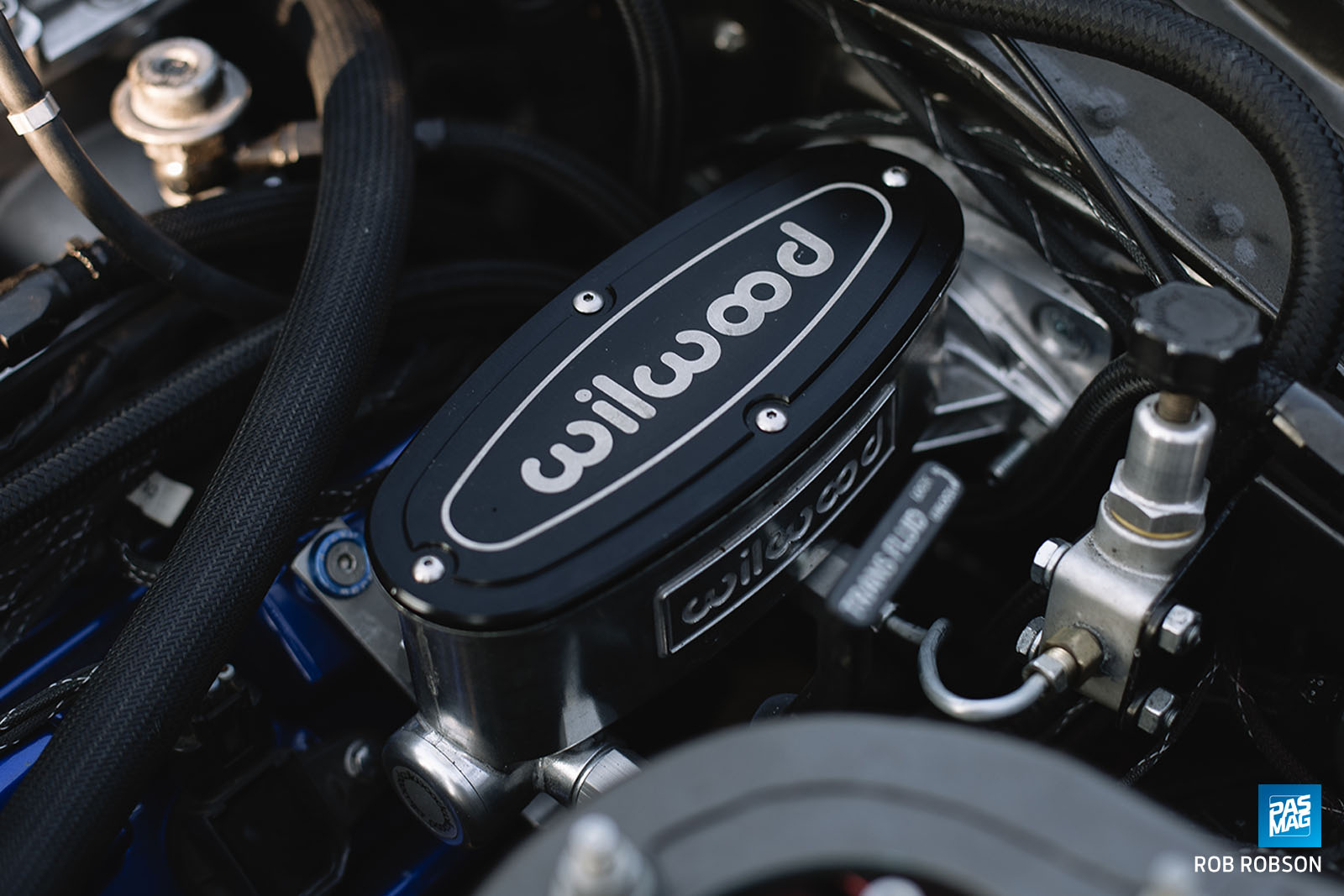

  • Wilwood brake master cylinder
  • Cyrious Garageworks (remote mount brake booster, secondary caliper parking brake)

CHASSIS/SUSPENSION

  • Megan Racing (Street coilovers, front LCAs, multilink arms)

EXTERIOR

  • TRD (fender flares, rear wing, chin spoiler)
  • Toyota Celica GTV grille
  • JDM fender mirrors

INTERIOR

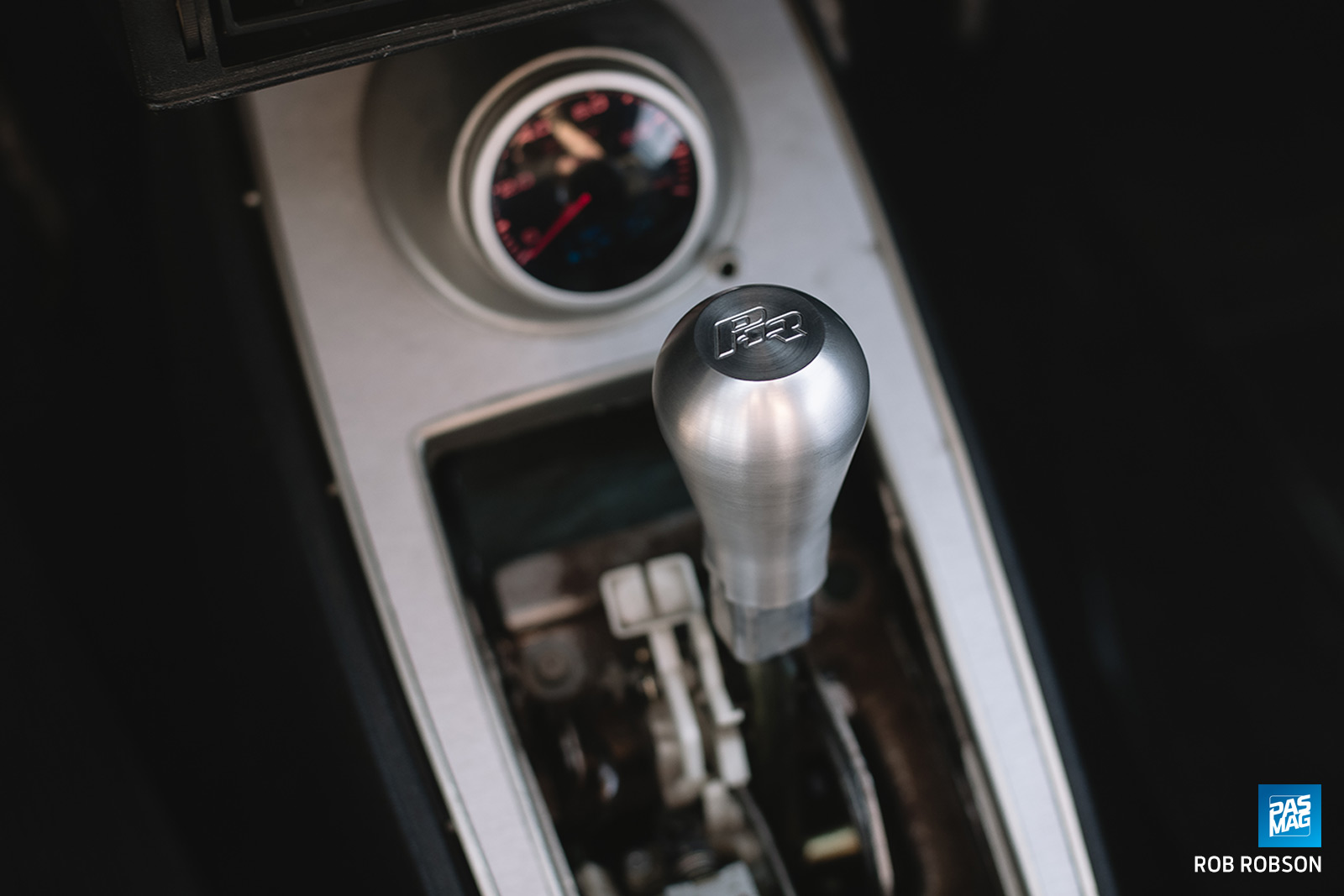

  • PHR shift knob
  • Momo steering wheel
  • Racetech gauges (speedometer, tachometer, fuel)
  • Autometer indicator gauge
  • AEM wideband fail safe AFR gauge
  • Toyota MKIV Supra seats

PHOTO GALLERY

04 John Nguyen 1072 Toyota Celica PASMAG

05 John Nguyen 1072 Toyota Celica PASMAG

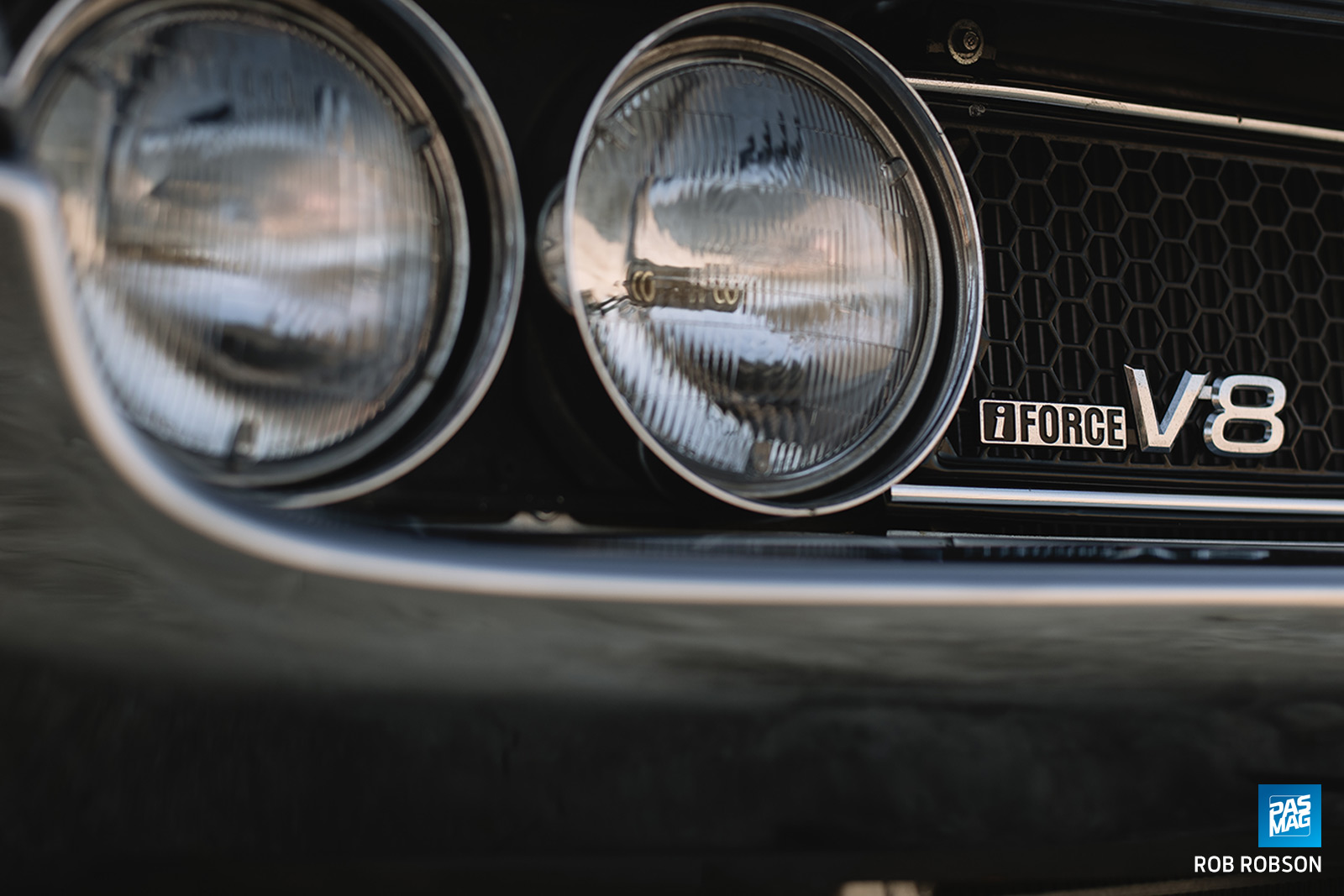

07 John Nguyen 1072 Toyota Celica PASMAG

10 John Nguyen 1072 Toyota Celica PASMAG

09 John Nguyen 1072 Toyota Celica PASMAG

11 John Nguyen 1072 Toyota Celica PASMAG

12 John Nguyen 1072 Toyota Celica PASMAG

15 John Nguyen 1072 Toyota Celica PASMAG

16 John Nguyen 1072 Toyota Celica PASMAG

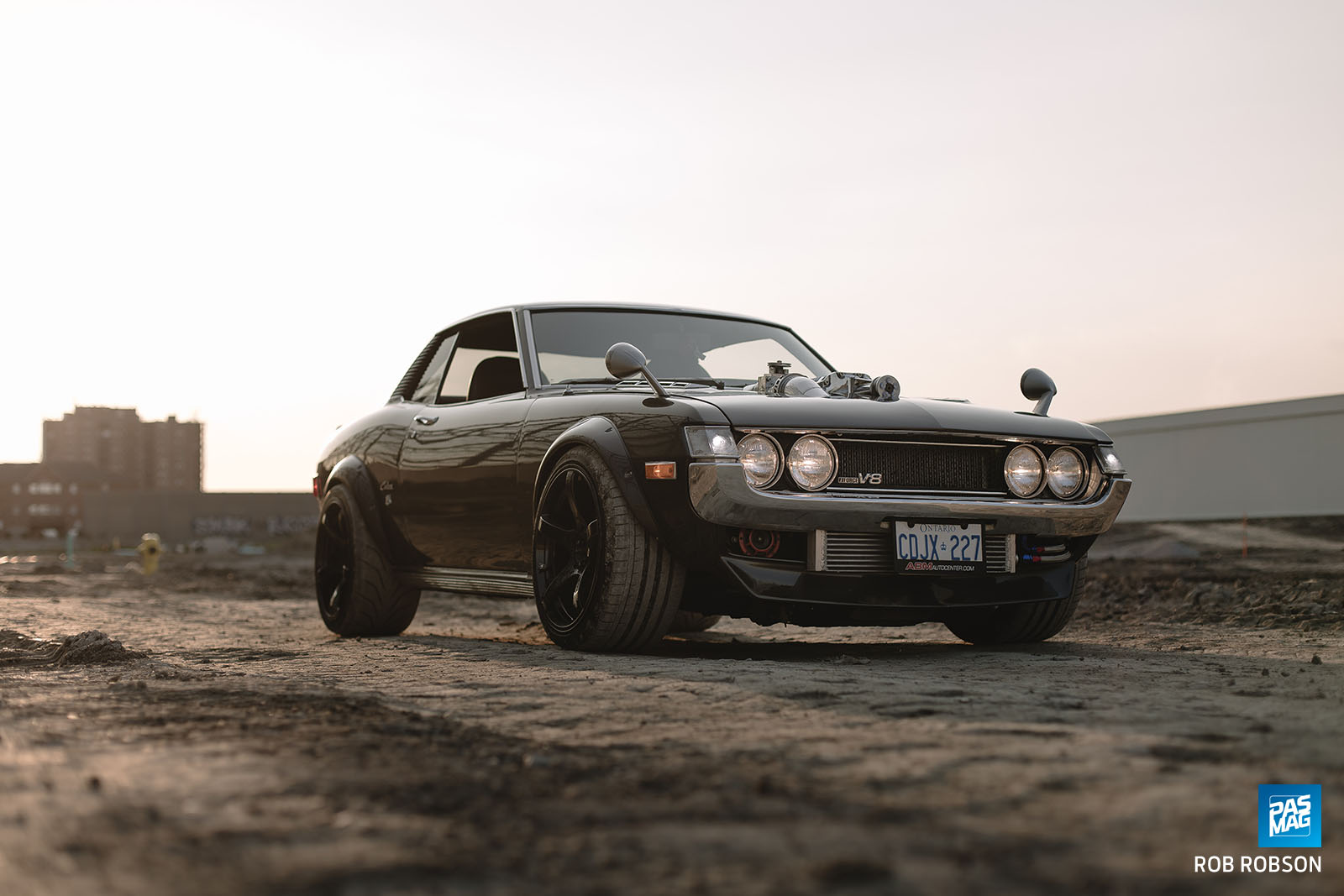

18 John Nguyen 1072 Toyota Celica PASMAG

19 John Nguyen 1072 Toyota Celica PASMAG

20 John Nguyen 1072 Toyota Celica PASMAG
